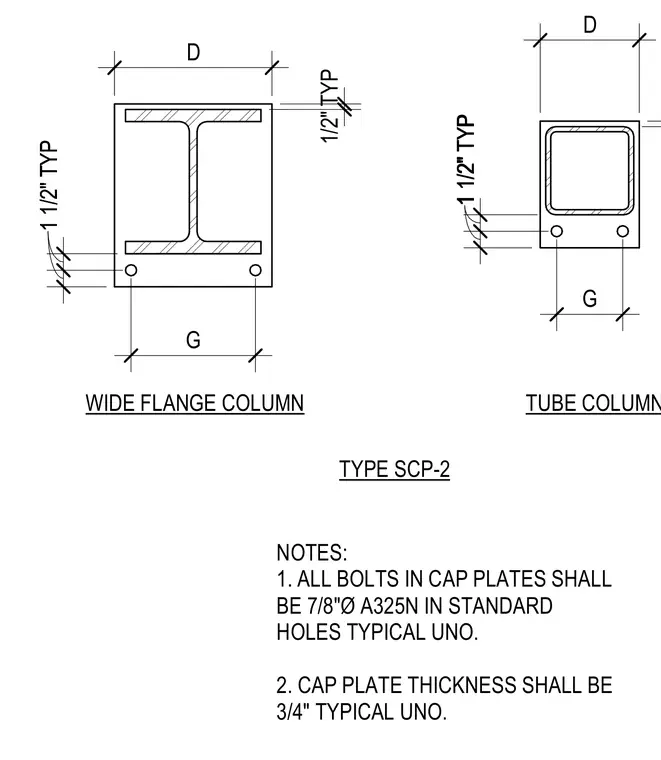

Type SCP-2 column cap plates sit atop wide flange columns and hollow structural section tube columns. The assembly utilizes three-quarter-inch thick cap plates secured with seven-eighth-inch diameter A325N bolts in standard holes, positioned with one-and-a-half-inch typical edge distances and specific gauge dimensions. All cap plates conform to these standard requirements unless otherwise noted on the drawings.
TUBE COLUMN WIDE FLANGE COLUMN G D 1/2" TYP D G 1 1/2" TYP 1 1/2" TYP NOTES: 1. ALL BOLTS IN CAP PLATES SHALL BE 7/8"Ø A325N IN STANDARD HOLES TYPICAL UNO. 2. CAP PLATE THICKNESS SHALL BE 3/4" TYPICAL UNO. TYPE SCP-2 1 1/2" TYP 1 1/2" TYP
