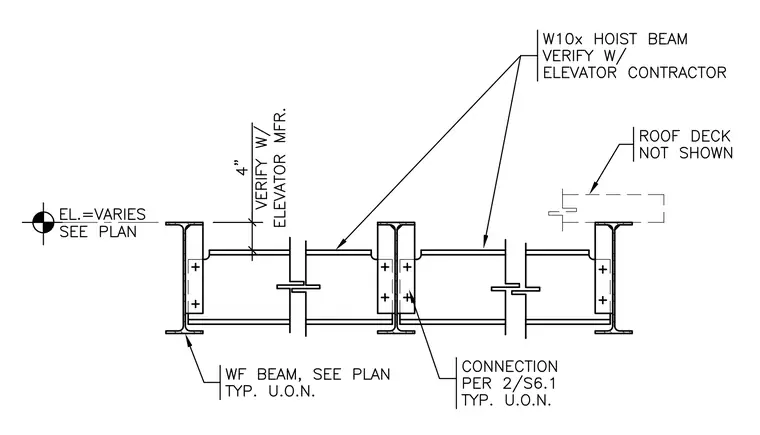

Wide flange hoist beams run parallel and frame into wide flange support beams with bolted connection details per standard structural drawings. A four-inch vertical clearance is provided and verified with the elevator manufacturer. The roof deck is indicated as not shown for clarity, and elevations vary per plan.
