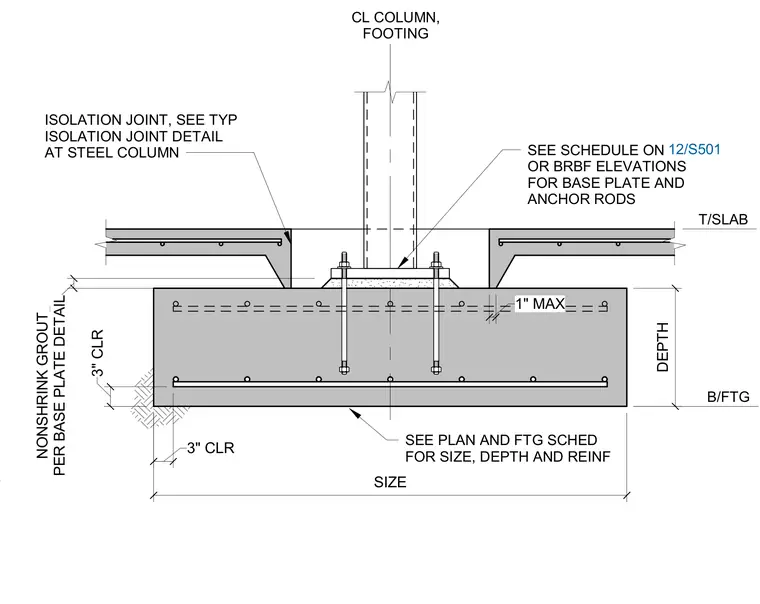

A structural steel column rests on a base plate anchored to a cast-in-place concrete footing with anchor rods. Nonshrink grout fills the gap beneath the base plate per the base plate detail. An isolation joint with a one-inch maximum gap separates the concrete slab-on-grade from the column and footing assembly. The footing provides three inches of clear cover to reinforcing steel and is sized according to structural drawings and foundation schedules.
B/FTG T/SLAB CL COLUMN, FOOTING SEE PLAN AND FTG SCHED FOR SIZE, DEPTH AND REINF DEPTH SEE SCHEDULE ON OR BRBF ELEVATIONS FOR BASE PLATE AND ANCHOR RODS 3" CLR SIZE 3" CLR 1" MAX ISOLATION JOINT, SEE TYP ISOLATION JOINT DETAIL AT STEEL COLUMN PER BASE PLATE DETAIL NONSHRINK GROUT 12/S501
