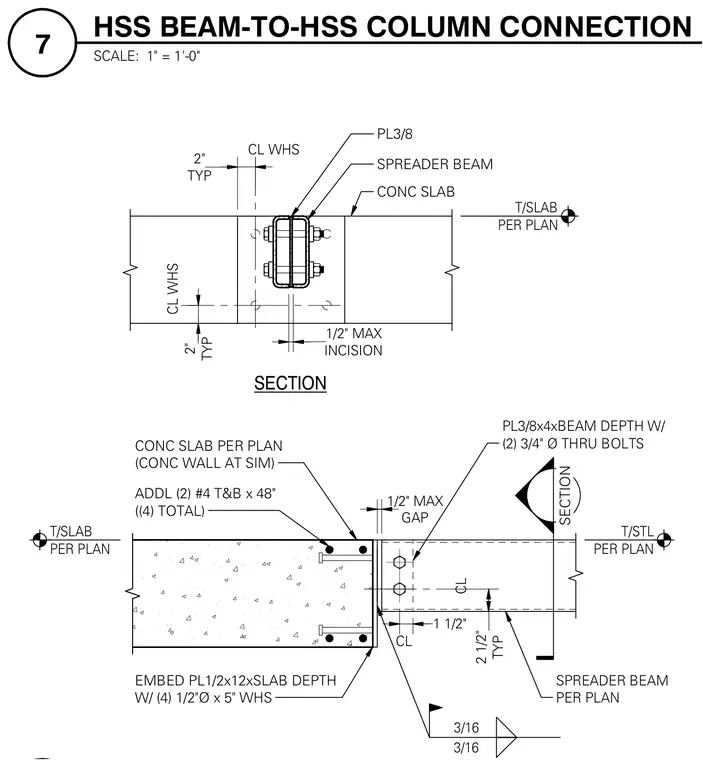

A structural connection between an HSS beam and an HSS column utilizes a spreader beam and an embed plate. The concrete slab or concrete wall connects to the column via an embed plate measuring 1/2 inch by 12 inches by the slab depth, secured with four 1/2-inch diameter by 5-inch welded headed studs and reinforced with additional number 4 top and bottom bars measuring 48 inches in length for a total of four bars. The spreader beam is tied with a 3/8-inch plate with a 1/2-inch maximum incision and a 3/8-inch by 4-inch plate matching the beam depth, fastened using two 3/4-inch diameter through-bolts. Fillet welds of 3/16 inch secure the assembly components according to the structural design.
T/SLAB PER PLAN T/STL PER PLAN T/SLAB PER PLAN 1 1/2" 3/16 3/16 EMBED PL1/2x12xSLAB DEPTH W/ (4) 1/2"Ø x 5" WHS ADDL (2) #4 T&B x 48" ((4) TOTAL) SECTION TYP 2" CONC SLAB CONC SLAB PER PLAN (CONC WALL AT SIM) CL WHS CL WHS TYP 2" SPREADER BEAM PL3/8 INCISION 1/2" MAX GAP 1/2" MAX PL3/8x4xBEAM DEPTH W/ (2) 3/4" Ø THRU BOLTS SPREADER BEAM PER PLAN CL CL SECTION TYP 2 1/2" SCALE: 1" = 1'-0" 7 HSS BEAM-TO-HSS COLUMN CONNECTION
