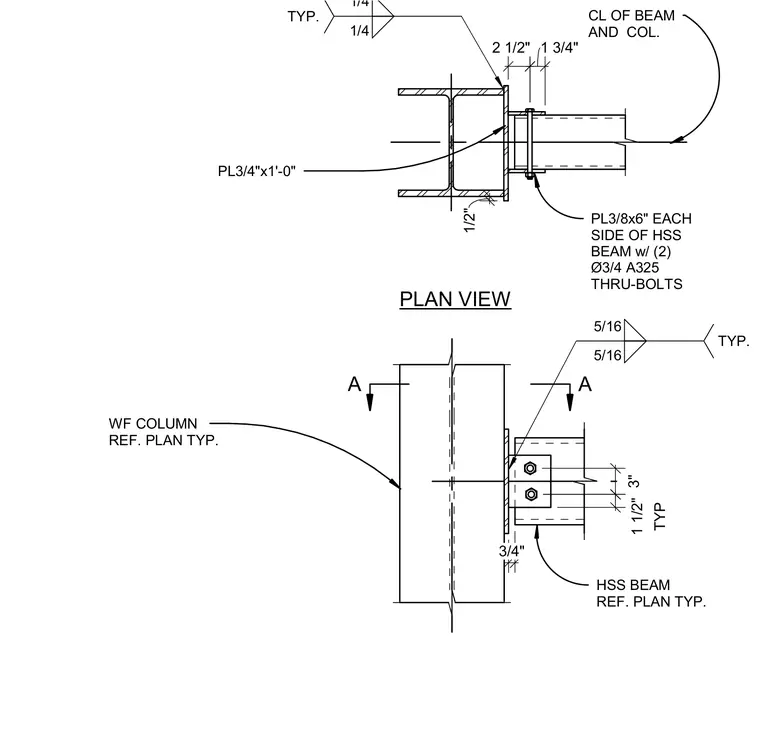

An HSS beam connects to the web of a wide flange column using a three-quarter-inch thick plate welded to the column face. Three-eighths-inch plates are welded to each side of the HSS beam and secured with two three-quarter-inch diameter A325 thru-bolts. Fillet welds of five-sixteenth-inch size connect the beam side plates, and quarter-inch welds secure the main column plate. The centerline of the beam aligns with the column web reference plan.
PLAN VIEW 1/4 1/4 TYP. CL OF BEAM AND COL. WF COLUMN REF. PLAN TYP. HSS BEAM REF. PLAN TYP. PL3/4"x1'-0" A A 2 1/2" 1 3/4" 1/2" 5/16 5/16 TYP. PL3/8x6" EACH SIDE OF HSS BEAM w/ (2) Ø3/4 A325 THRU-BOLTS 3/4" TYP 1 1/2" 3"
