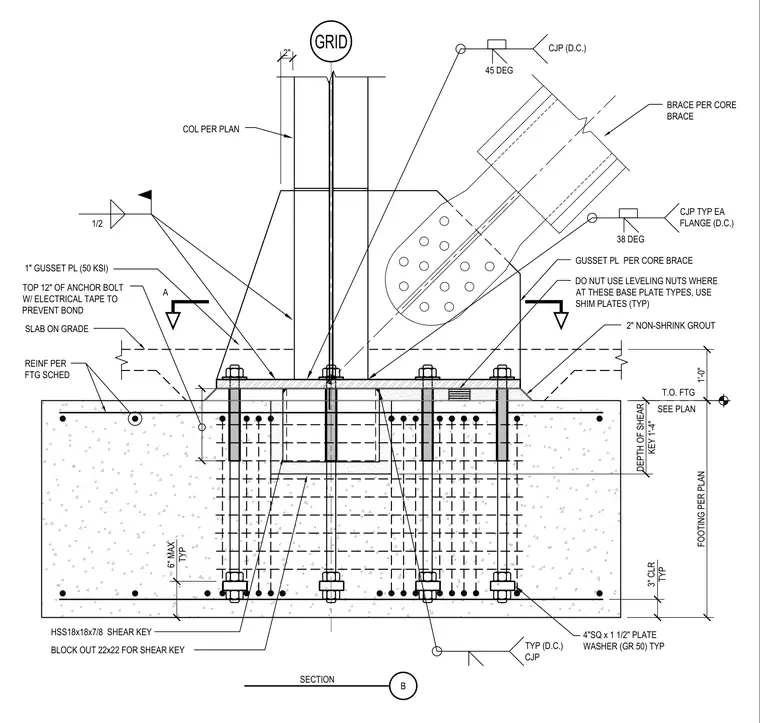

A structural steel HSS column and brace connection bears on a reinforced concrete footing with a two-inch non-shrink grout layer. An HSS18x18x7/8 column connects to a base plate anchored by anchor bolts utilizing four-inch square by one-and-a-half-inch Grade 50 plate washers and shim plates in lieu of leveling nuts. The top twelve inches of the anchor bolts are wrapped with electrical tape to prevent bond with the concrete. A central HSS shear key is set into a twenty-two by twenty-two-inch blockout with a depth of one foot four inches. A one-inch Grade 50 gusset plate ties into the brace with complete joint penetration welds on each flange, while the slab on grade rests at the top of the footing.
BRACE PER CORE BRACE GUSSET PL PER CORE BRACE 2" NON-SHRINK GROUT COL PER PLAN REINF PER FTG SCHED SLAB ON GRADE 3" CLR TYP DO NUT USE LEVELING NUTS WHERE AT THESE BASE PLATE TYPES, USE SHIM PLATES (TYP) TYP (D.C.) CJP DEPTH OF SHEAR KEY 1'-4" HSS18x18x7/8 SHEAR KEY BLOCK OUT 22x22 FOR SHEAR KEY T.O. FTG SEE PLAN FOOTING PER PLAN A GRID CJP (D.C.) 45 DEG CJP TYP EA FLANGE (D.C.) 38 DEG 1'-0" 1" GUSSET PL (50 KSI) 2" 6" MAX TYP 4"SQ x 1 1/2" PLATE WASHER (GR 50) TYP 1/2 B SECTION TOP 12" OF ANCHOR BOLT W/ ELECTRICAL TAPE TO PREVENT BOND
