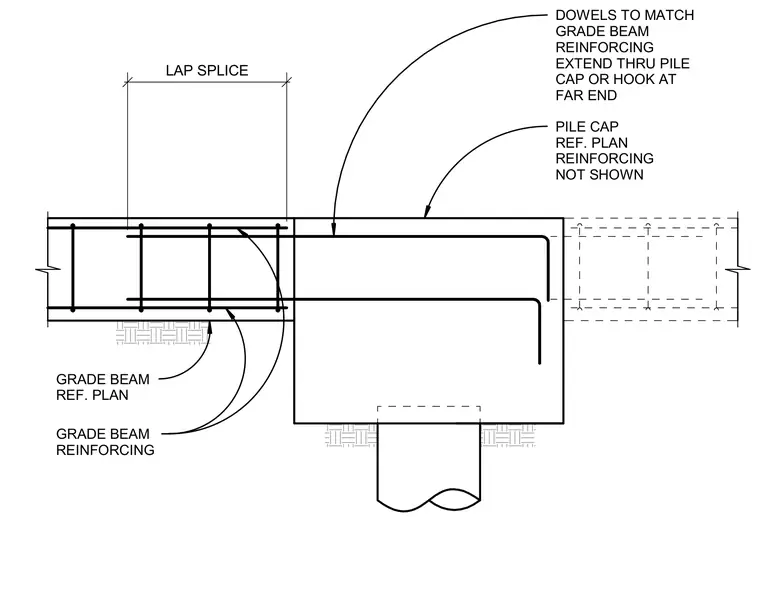

Grade beam reinforcing bars extend into a cast-in-place concrete pile cap with a specified lap splice length. Dowels matching the grade beam reinforcing extend through the pile cap or hook at the far end. Additional pile cap reinforcing is referenced per structural plans and not fully shown in this elevation. The grade beam rests on compacted subgrade with dimensions and spacing per the structural framing plan.
DOWELS TO MATCH GRADE BEAM REINFORCING EXTEND THRU PILE CAP OR HOOK AT FAR END PILE CAP REF. PLAN REINFORCING NOT SHOWN GRADE BEAM REF. PLAN GRADE BEAM REINFORCING LAP SPLICE
