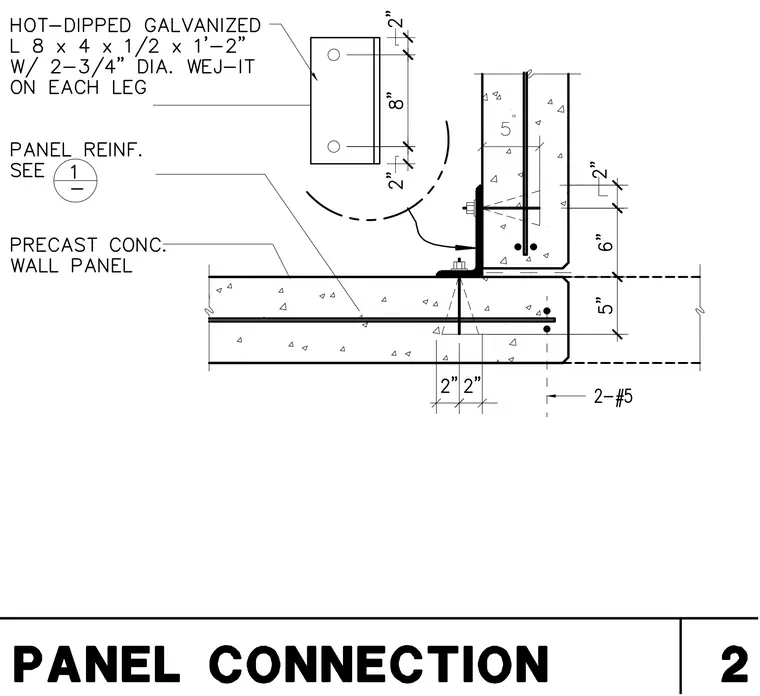

Precast concrete wall panels connect at building corners using a hot-dipped galvanized angle measuring L 8 x 4 x 1/2 by 1'-2" long. The angle fastens to each panel leg with two 3/4-inch diameter Wej-It expansion anchors. Panel reinforcement consists of two #5 reinforcing bars placed per structural specifications.
