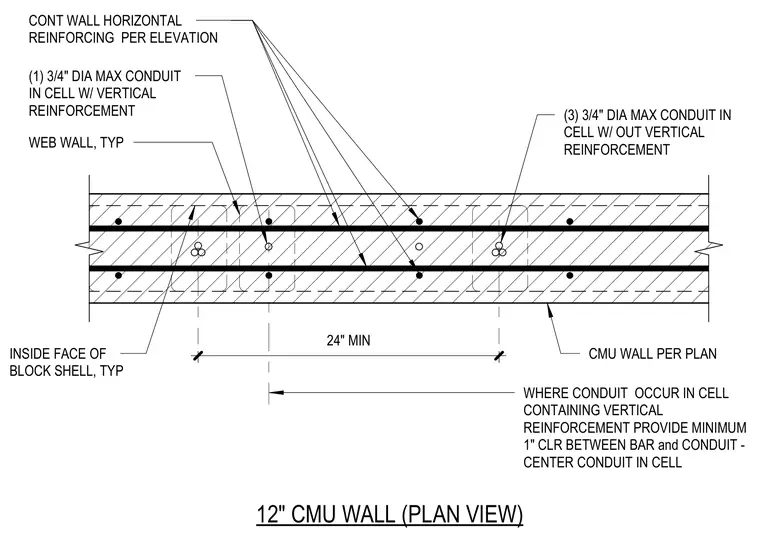

Placement requirements for electrical conduits routed vertically inside a twelve-inch concrete masonry unit wall. Up to three three-quarter-inch diameter maximum conduits are permitted in unreinforced cells, while cells containing vertical reinforcing are restricted to one three-quarter-inch diameter maximum conduit. Conduits must be centered within the block cell along the inside face of the block shell. Where conduits occur in cells with vertical reinforcing, a minimum one-inch clearance is required between the reinforcing bar and the conduit.
12" CMU WALL (PLAN VIEW) CONT WALL HORIZONTAL REINFORCING PER ELEVATION CMU WALL PER PLAN 24" MIN (3) 3/4" DIA MAX CONDUIT IN CELL W/ OUT VERTICAL REINFORCEMENT (1) 3/4" DIA MAX CONDUIT IN CELL W/ VERTICAL REINFORCEMENT WHERE CONDUIT OCCUR IN CELL CONTAINING VERTICAL REINFORCEMENT PROVIDE MINIMUM 1" CLR BETWEEN BAR and CONDUIT - CENTER CONDUIT IN CELL INSIDE FACE OF BLOCK SHELL, TYP WEB WALL, TYP
