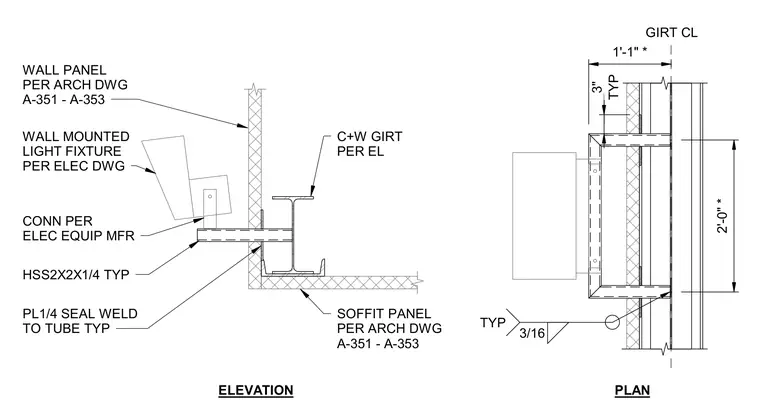

A hollow structural section member measuring HSS 2x2x1/4 connects back to a structural girt with a three-sixteenths inch seal weld to a quarter-inch plate. A wall-mounted light fixture attaches to the extending tube using connections specified by the electrical equipment manufacturer. Wall panels and soffit panels enclose the framing assembly per architectural drawings.
WALL MOUNTED LIGHT FIXTURE PER ELEC DWG PLAN ELEVATION CONN PER ELEC EQUIP MFR WALL PANEL PER ARCH DWG A-351 - A-353 C+W GIRT PER EL HSS2X2X1/4 TYP PL1/4 SEAL WELD TO TUBE TYP SOFFIT PANEL PER ARCH DWG A-351 - A-353 GIRT CL 1'-1" * 2'-0" * 3/16 TYP TYP 3"
