Structural · S-2WWKH

Typical Housekeeping Pad and Concrete Curb

Materials

Elements

Floors / Slabs Decks Arches Expansion / Control Joints Site / Paving Reinforcing

About this detail

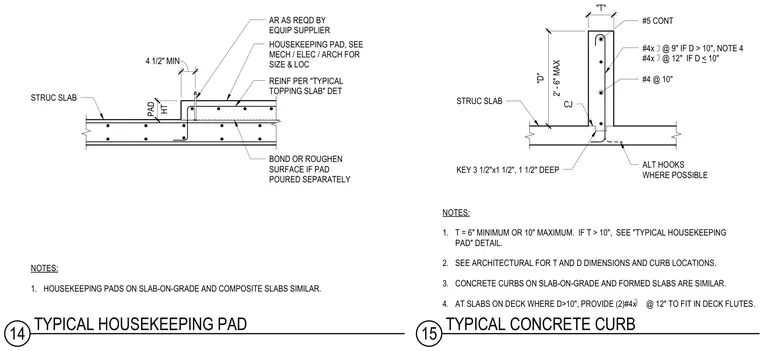

Standard concrete housekeeping pads and concrete curbs bear on structural slabs, including slab-on-grade and composite slab applications. The housekeeping pad sits on a structural slab with a minimum four-and-a-half-inch bond surface or roughened finish if poured separately, using reinforcement per the typical topping slab detail and anchor bolts sized as required by the equipment supplier. The concrete curb features a depth up to two feet six inches maximum, a thickness ranging from six to ten inches, a key joint measuring three-and-a-half by one-and-a-half inches by one-and-a-half inches deep, and vertical reinforcing bars spaced at nine to twelve inches with continuous #5 top bars and alternate hooks where possible.
