A reinforced concrete slab over metal deck bears on a masonry wall with a continuous 1-inch by 3-inch shim plate and one-half-inch diameter by 6-inch heavy stud anchors spaced at 24 inches on center. The metal decking stops short of running continuously over the wall to maintain a 2-inch minimum gap. Dowels tied into the masonry wall extend into the concrete slab per detail 2/S220. The masonry wall requires sizing and reinforcing per plan and schedule.

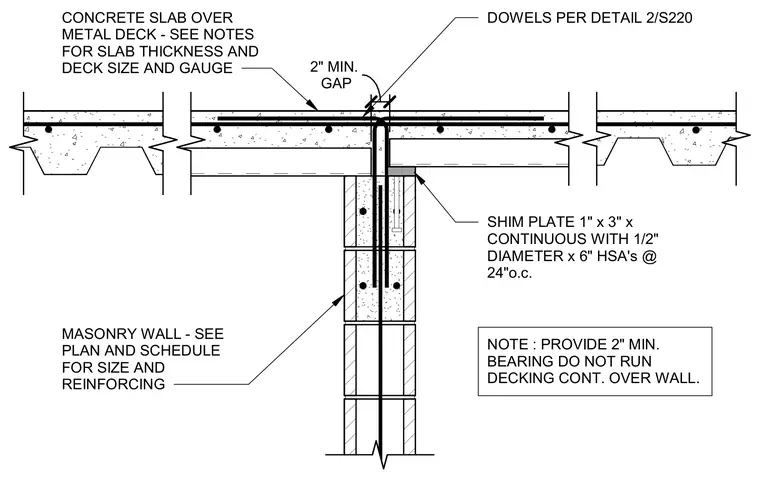

DOWELS PER DETAIL 2/S220 NOTE : PROVIDE 2" MIN. BEARING DO NOT RUN DECKING CONT. OVER WALL. GAP 2" MIN. MASONRY WALL - SEE PLAN AND SCHEDULE FOR SIZE AND REINFORCING CONCRETE SLAB OVER METAL DECK - SEE NOTES FOR SLAB THICKNESS AND DECK SIZE AND GAUGE SHIM PLATE 1" x 3" x CONTINUOUS WITH 1/2" DIAMETER x 6" HSA's @ 24"o.c.
