Structural · S-2WMKX

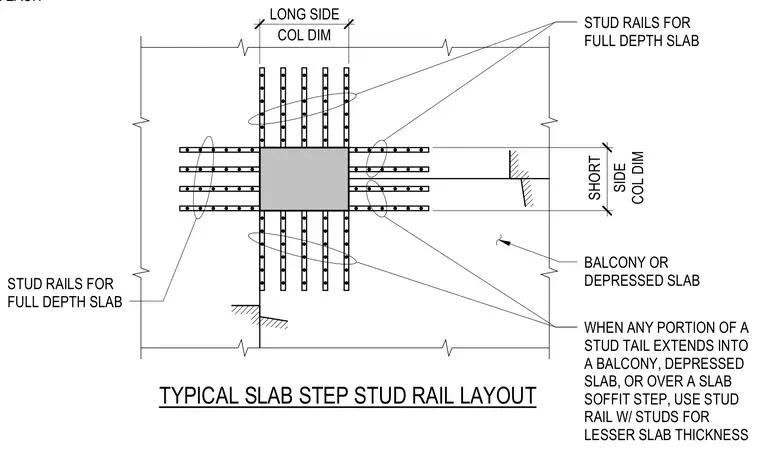

Typical Slab Step Stud Rail Layout

Materials

Elements

About this detail

Concrete slab reinforcement layout detailing stud rail placement around a column with dimensions for long and short column sides. Twenty-four-inch stud rails are specified for full depth slab areas, while seventeen-inch stud rails serve full depth conditions in other zones. When any portion of a stud rail extends into a balcony, depressed slab, or over a slab soffit step, stud rails with studs for lesser slab thickness must be used.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
