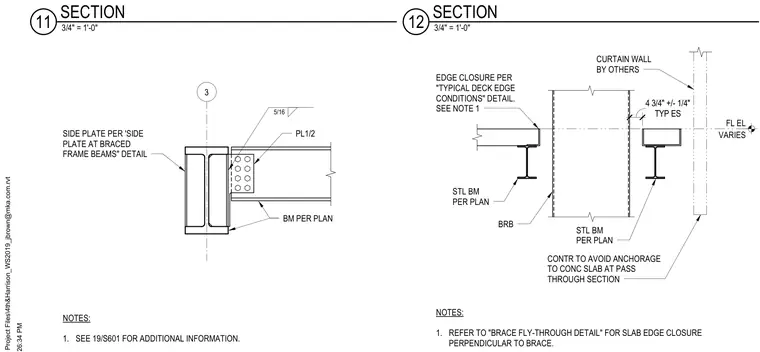

A structural steel beam connects to a braced frame column using a one-half-inch side plate welded with five-sixteenths fillet welds. A secondary section shows a steel beam passing through at a buckling-restrained brace with edge closure at the concrete slab and a curtain wall assembly located per plan. A dimension of four and three-quarters inches plus or minus one-quarter inch is maintained at the typical edge of slab.
STL BM PER PLAN CONTR TO AVOID ANCHORAGE TO CONC SLAB AT PASS THROUGH SECTION BRB STL BM PER PLAN EDGE CLOSURE PER "TYPICAL DECK EDGE CONDITIONS" DETAIL. SEE NOTE 1 TYP ES 4 3/4" +/- 1/4" VARIES FL EL NOTES: 1. REFER TO "BRACE FLY-THROUGH DETAIL" FOR SLAB EDGE CLOSURE PERPENDICULAR TO BRACE. CURTAIN WALL BY OTHERS 3 PL1/2 BM PER PLAN SIDE PLATE PER 'SIDE PLATE AT BRACED FRAME BEAMS" DETAIL NOTES: 1. SEE 19/S601 FOR ADDITIONAL INFORMATION. 5/16 3/4" = 1'-0" 11 SECTION 3/4" = 1'-0" 12 SECTION
