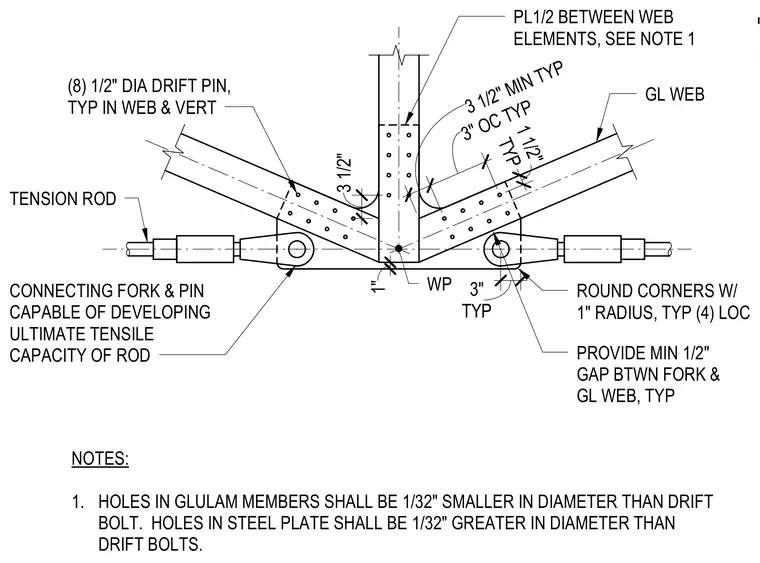

A one-half-inch steel plate is sandwiched between glued-laminated timber web elements at the bottom center connection of a timber truss. The assembly connects to a tension rod via a fork and pin assembly capable of developing the ultimate tensile capacity of the rod. Eight one-half-inch diameter drift pins are typically installed in both the web and vertical members. Holes in the glulam members are specified to be one-thirty-second inch smaller in diameter than the drift bolts, while holes in the steel plate are one-thirty-second inch greater. A minimum one-half-inch gap is provided between the fork and the glulam web, with corners rounded to a one-inch radius at specified locations.
PL1/2 BETWEEN WEB ELEMENTS, SEE NOTE 1 CONNECTING FORK & PIN CAPABLE OF DEVELOPING ULTIMATE TENSILE CAPACITY OF ROD GL WEB TENSION ROD ROUND CORNERS W/ 1" RADIUS, TYP (4) LOC NOTES: 1. HOLES IN GLULAM MEMBERS SHALL BE 1/32" SMALLER IN DIAMETER THAN DRIFT BOLT. HOLES IN STEEL PLATE SHALL BE 1/32" GREATER IN DIAMETER THAN DRIFT BOLTS. 3 1/2" MIN TYP 3" OC TYP TYP 1 1/2" TYP 3" PROVIDE MIN 1/2" GAP BTWN FORK & GL WEB, TYP WP 1" 3 1/2" (8) 1/2" DIA DRIFT PIN, TYP IN WEB & VERT
