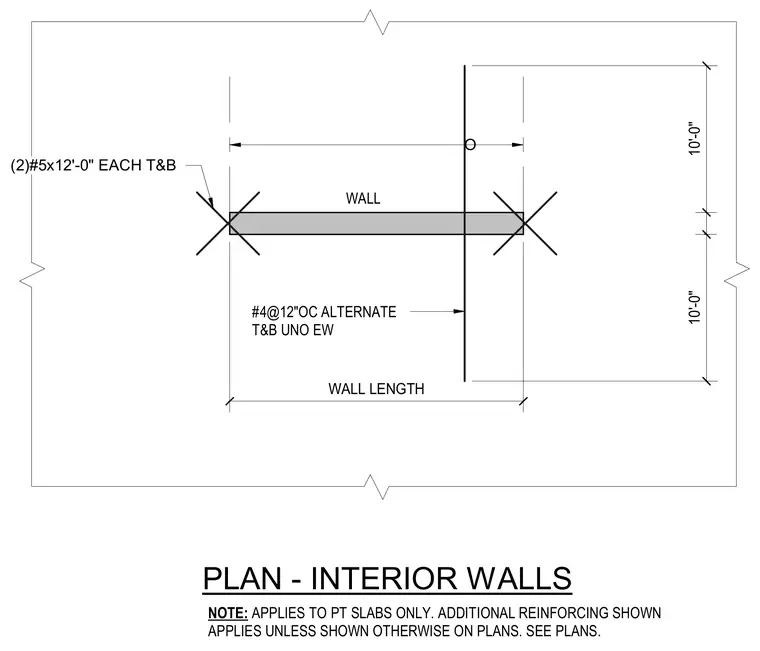

Interior walls feature number four reinforcing bars spaced at twelve inches on center alternating top and bottom unless noted otherwise in each way. Additional reinforcing consists of two number five bars by twelve feet long placed at each top and bottom along the wall length. This detail applies specifically to post-tensioned slabs and supplements standard plan requirements.
(2)#5x12'-0" EACH T&B WALL LENGTH PLAN - INTERIOR WALLS #4@12"OC ALTERNATE T&B UNO EW WALL 10'-0" . 10'-0" NOTE: APPLIES TO PT SLABS ONLY. ADDITIONAL REINFORCING SHOWN APPLIES UNLESS SHOWN OTHERWISE ON PLANS. SEE PLANS. O
