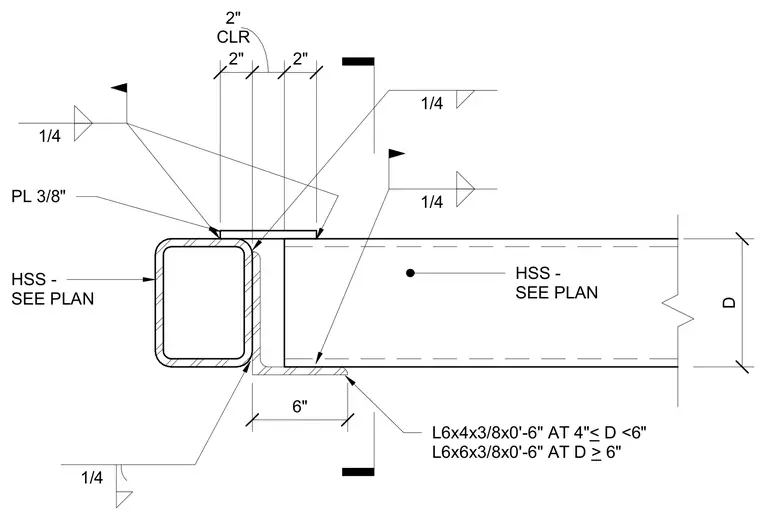

An HSS framing member connects to a primary HSS support using a bottom seat angle and a top plate. The seat angle is either L6x4x3/8 by six inches long for depths between four and six inches, or L6x6x3/8 by six inches long for depths greater than or equal to six inches. A 3/8-inch thick plate ties the top of the connecting HSS to the support. All welded connections utilize quarter-inch fillet welds unless noted otherwise. A two-inch clearance is maintained at the top connection interface.
HSS - SEE PLAN L6x4x3/8x0'-6" AT 4"< D <6" L6x6x3/8x0'-6" AT D > 6" PL 3/8" HSS - SEE PLAN D 6" 2" CLR 2" 2" 1/4 1/4 1/4 1/4
