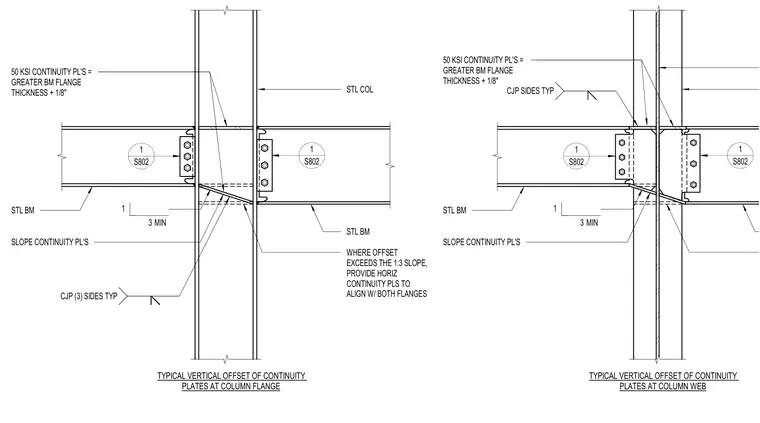

Structural steel framing conditions occur where steel beams frame into a steel column with vertically offset continuity plates at the column flange and web. The 50 KSI continuity plates are sized to the greater beam flange thickness plus one-eighth inch. Where the offset exceeds the one-to-three minimum slope, horizontal continuity plates are provided to align with both beam flanges. The sloped continuity plates are secured with complete joint penetration welds on three sides typically.
TYPICAL VERTICAL OFFSET OF CONTINUITY PLATES AT COLUMN FLANGE TYPICAL VERTICAL OFFSET OF CONTINUITY PLATES AT COLUMN WEB STL BM STL BM 50 KSI CONTINUITY PL'S = GREATER BM FLANGE THICKNESS + 1/8" 50 KSI CONTINUITY PL'S = GREATER BM FLANGE THICKNESS + 1/8" STL BM STL COL WHERE OFFSET EXCEEDS THE 1:3 SLOPE, PROVIDE HORIZ CONTINUITY PLS TO ALIGN W/ BOTH FLANGES SLOPE CONTINUITY PL'S 1 3 MIN 1 S802 1 S802 1 S802 1 S802 1 3 MIN SLOPE CONTINUITY PL'S CJP SIDES TYP CJP (3) SIDES TYP
