A typical steel stud intersects a continuous bottom track with number ten sheet metal screws spaced at twenty-four inches on center from stud to stud. Additional number ten sheet metal screws are placed on each side at each stud. A powder-actuated fastener is installed per sheet S0.20 at a maximum spacing of six inches.

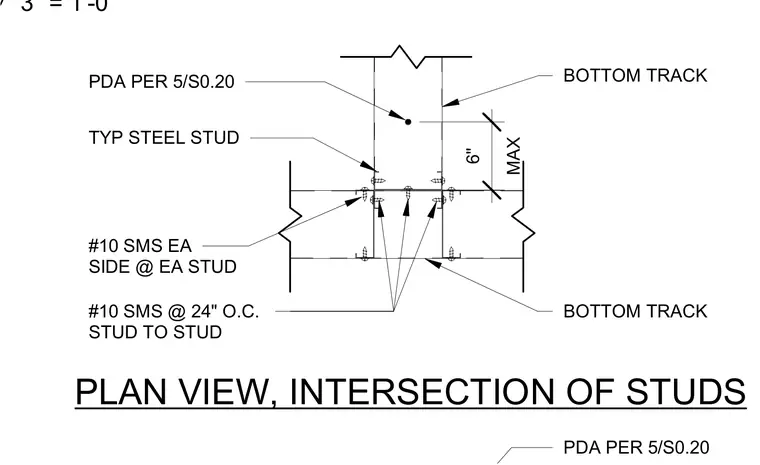

MAX 6" PDA PER 5/S0.20 TYP STEEL STUD #10 SMS EA SIDE @ EA STUD #10 SMS @ 24" O.C. STUD TO STUD BOTTOM TRACK BOTTOM TRACK PLAN VIEW, INTERSECTION OF STUDS PDA PER 5/S0.20 3" = 1'-0"
