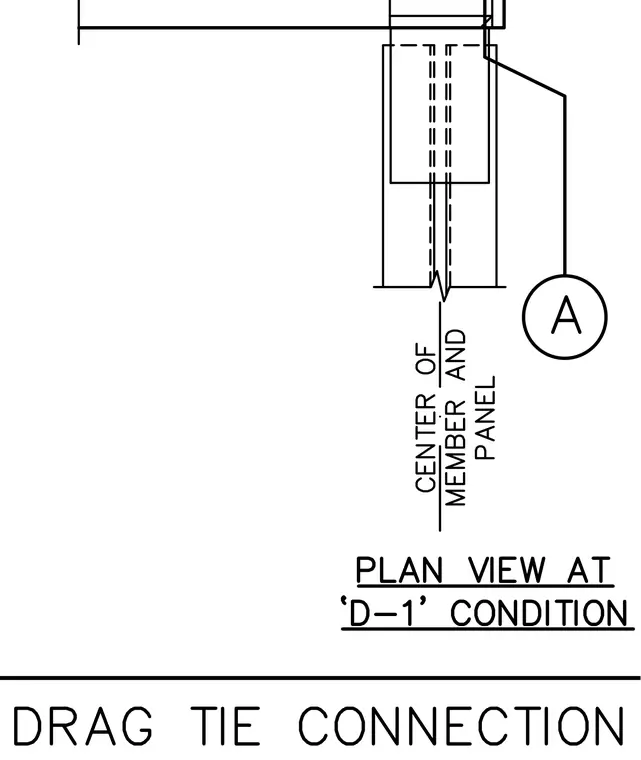

A drag tie connection is detailed in plan view at the D-1 condition, aligning the center of the structural member and panel. A callout bubble labeled A points to the connection interface. The plan view establishes the relative positioning between the framing member and the adjacent panel.
