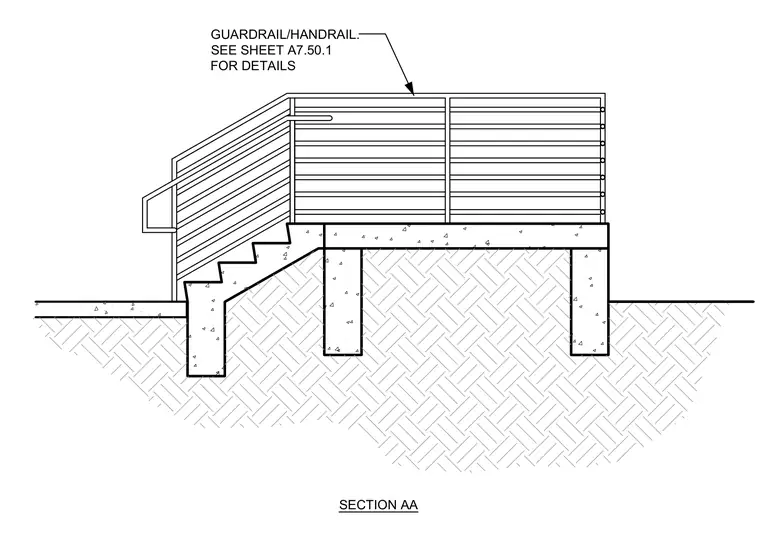

A guardrail and handrail assembly is mounted to a concrete stair structure supported by cast-in-place concrete footings and piers. Further connection details are referenced to sheet A7.50.1.
GUARDRAIL/HANDRAIL. SEE SHEET A7.50.1 FOR DETAILS SECTION AA
