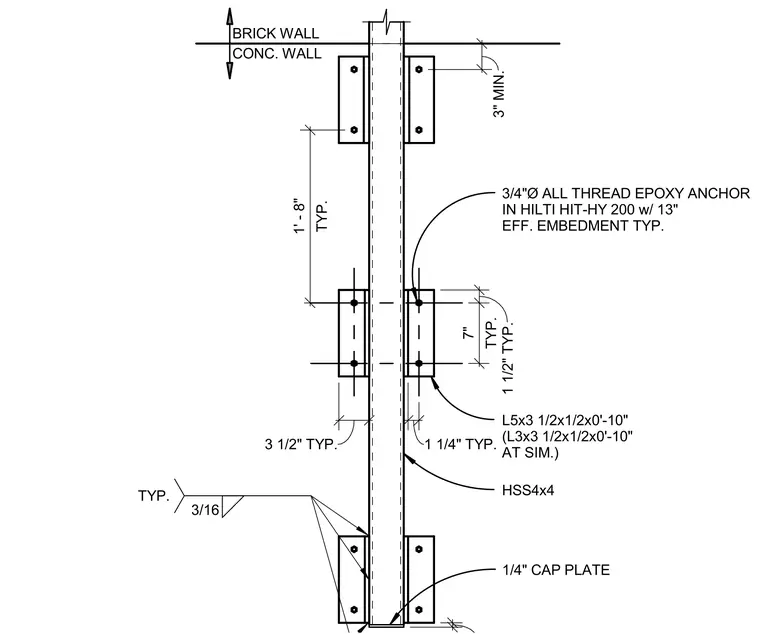

An HSS4x4 structural steel member connects to a concrete wall adjacent to a brick wall assembly. The connection utilizes L5x3 1/2x1/2x0'-10" steel angles secured with three-quarter-inch diameter all-thread epoxy anchors set in Hilti HIT-HY 200 adhesive with a thirteen-inch effective embedment. A quarter-inch cap plate seals the bottom of the hollow structural section with typical three-sixteenth-inch fillet welds.
3" MIN. TYP. 1' - 8" TYP. 7" 1 1/2" TYP. 1 1/4" TYP. 1/4" CAP PLATE L5x3 1/2x1/2x0'-10" (L3x3 1/2x1/2x0'-10" AT SIM.) 3 1/2" TYP. 3/4"Ø ALL THREAD EPOXY ANCHOR IN HILTI HIT-HY 200 w/ 13" EFF. EMBEDMENT TYP. HSS4x4 3/16 TYP. BRICK WALL CONC. WALL
