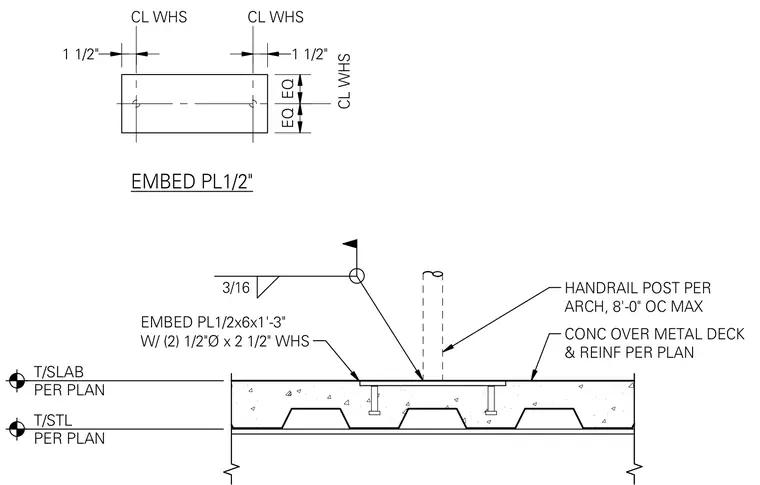

A handrail post is welded to a half-inch thick embed plate anchored into a concrete slab over metal deck. The embed plate measures 1/2 inch by 6 inches by 1 foot 3 inches and is secured with two 1/2-inch diameter by 2 1/2-inch welded headed studs. A 3/16-inch fillet weld connects the handrail post to the embed plate. The handrail post is spaced at a maximum of 8 feet 0 inches on center as specified per architectural plans. Concrete thickness and reinforcement are sized per structural and architectural plans.
CONC OVER METAL DECK & REINF PER PLAN HANDRAIL POST PER ARCH, 8'-0" OC MAX T/STL PER PLAN 3/16 EMBED PL1/2x6x1'-3" W/ (2) 1/2"Ø x 2 1/2" WHS EMBED PL1/2" EQ EQ CL WHS 1 1/2" 1 1/2" CL WHS CL WHS T/SLAB PER PLAN
