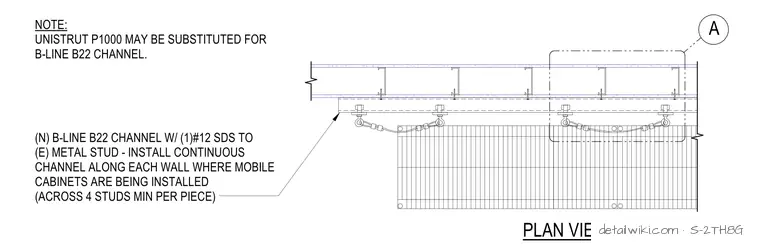

The drawing shows a plan view detail of a continuous metal channel (B-Line B22 channel or optional Unistrut P1000) attached to existing metal studs using self-drilling screws. The channel runs continuously along the wall where mobile cabinets are installed, spanning a minimum of four studs per piece. Additional attachment details and hardware such as eye bolts and turnbuckles are shown supporting or stabilizing the casework elements.
Text on the drawing
(N) B-LINE B22 CHANNEL W/ (1)#12 SDS TO (E) METAL STUD - INSTALL CONTINUOUS CHANNEL ALONG EACH WALL WHERE MOBILE CABINETS ARE BEING INSTALLED (ACROSS 4 STUDS MIN PER PIECE) PLAN VIEW A NOTE: UNISTRUT P1000 MAY BE SUBSTITUTED FOR B-LINE B22 CHANNEL.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
