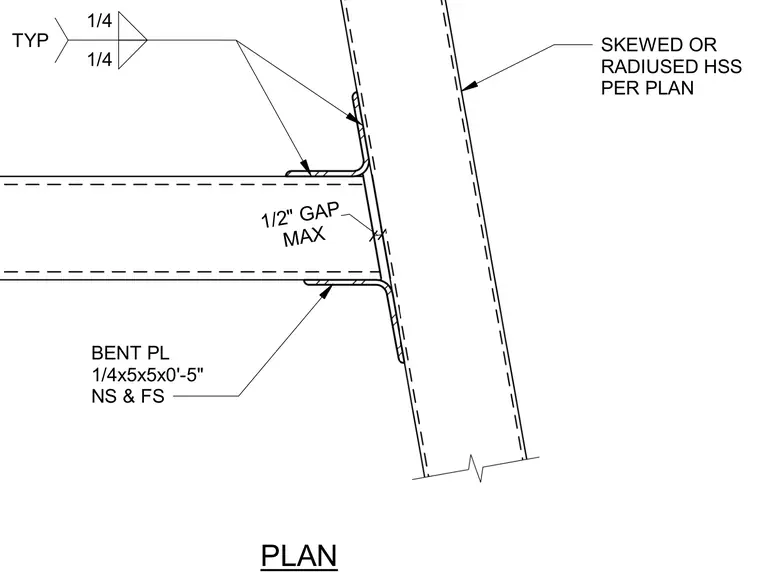

A structural beam frames into a skewed or radiused hollow structural section column with a maximum one-half inch gap maintained at the interface. Connection is achieved using one-quarter by five by five inch by zero-foot five-inch bent plates located on the near side and far side. Each bent plate is secured with typical one-quarter inch fillet welds.
1/4 1/4 TYP SKEWED OR RADIUSED HSS PER PLAN MAX 1/2" GAP BENT PL 1/4x5x5x0'-5" NS & FS PLAN
