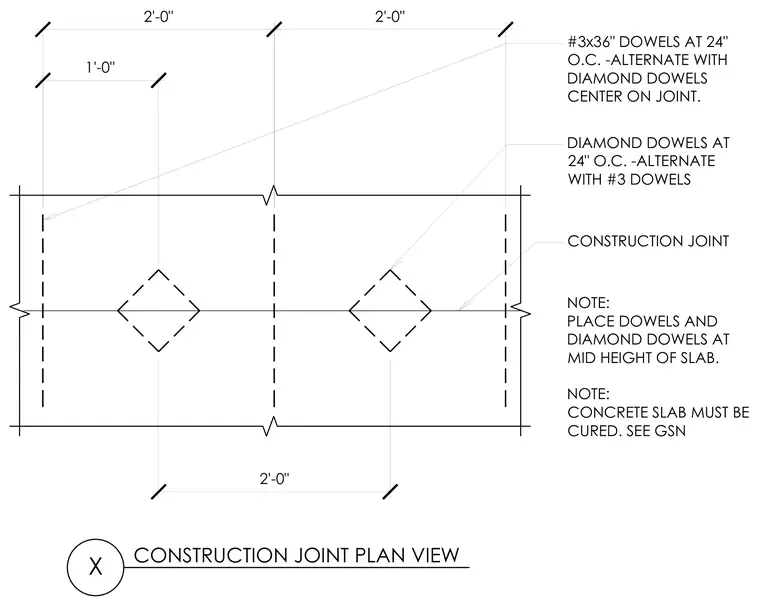

This plan view details a concrete slab construction joint reinforced with number 3 by thirty-six inch dowels spaced at twenty-four inches on center alternating with diamond dowels centered on the joint. Both the dowels and diamond dowels are placed at the mid height of the slab. The concrete slab must be cured in accordance with general structural notes.
X CONSTRUCTION JOINT PLAN VIEW #3x36" DOWELS AT 24" O.C. -ALTERNATE WITH DIAMOND DOWELS CENTER ON JOINT. DIAMOND DOWELS AT 24" O.C. -ALTERNATE WITH #3 DOWELS CONSTRUCTION JOINT NOTE: PLACE DOWELS AND DIAMOND DOWELS AT MID HEIGHT OF SLAB. NOTE: CONCRETE SLAB MUST BE CURED. SEE GSN 1'-0" 2'-0" 2'-0" 2'-0"
