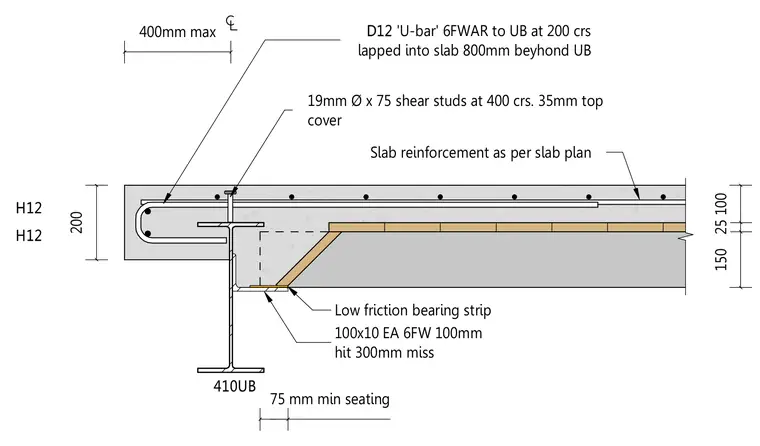

A 410UB universal beam supports a rib and infill concrete slab cantilever edge with a seventy-five millimeter minimum seating width. A low-friction bearing strip is placed beneath the slab infill on a one hundred by ten millimeter edge angle with alternating one-hundred-millimeter welds and three-hundred-millimeter gaps. Nineteen-millimeter diameter by seventy-five-millimeter shear studs are spaced at four-hundred-millimeter centers with thirty-five millimeters of top cover. D12 U-bars are welded to the universal beam at two-hundred-millimeter centers and lapped eight hundred millimeters beyond the beam into the slab. Main slab reinforcement follows the structural slab plan.
19mm Ø x 75 shear studs at 400 crs. 35mm top cover H12 H12 100x10 EA 6FW 100mm hit 300mm miss D12 'U-bar' 6FWAR to UB at 200 crs lapped into slab 800mm beyhond UB Slab reinforcement as per slab plan 410UB 150 25 100 200 400mm max Low friction bearing strip 75 mm min seating
