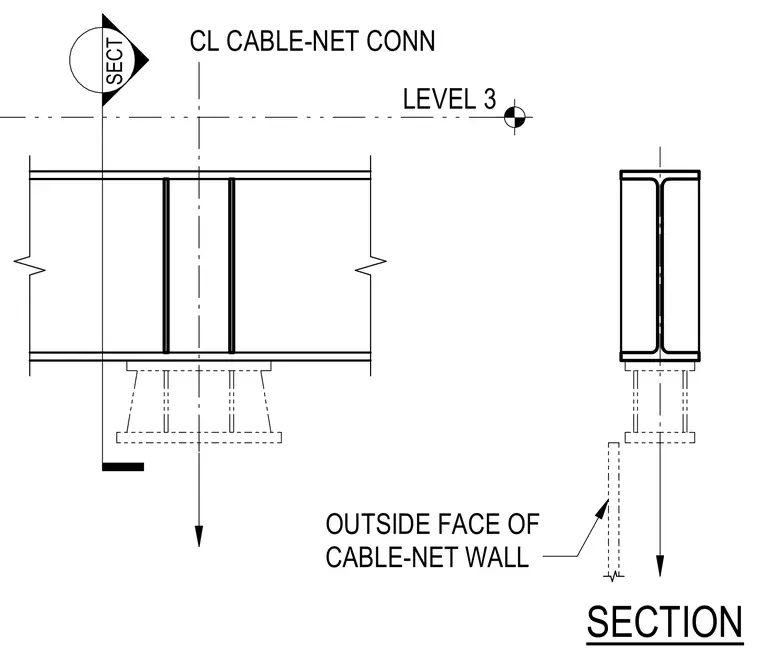

Centerline connection for a cable-net wall assembly at Level 3. The assembly features a structural member aligned with the level line and connected to a structural bracket below. A sectional view details the relationship of the connection relative to the outside face of the cable-net wall.
