Structural · S-2T46Z

Exterior Steel Stair Section and Support Details

Materials

Elements

Columns Stairs Floors / Slabs Site / Paving

About this detail

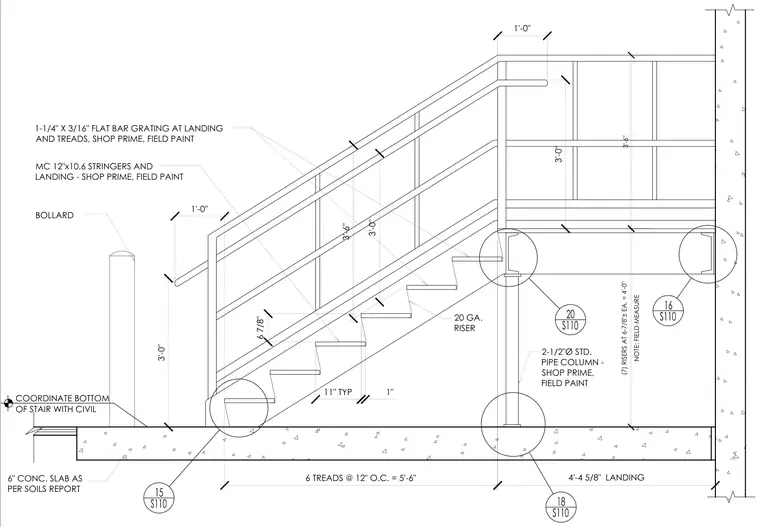

This exterior steel stair assembly is constructed with MC 12x10.6 stringers and landings receiving a shop prime and field paint finish. Treads and landings consist of 1-1/4 inch by 3/16 inch flat bar grating, paired with 20 gauge risers spaced at eleven inches typically. The stair framing is supported by a 2-1/2 inch diameter standard pipe column and a bollard coordinated with civil requirements at the base. The entire assembly bears on a six-inch concrete slab placed over subgrade per the soils report.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
