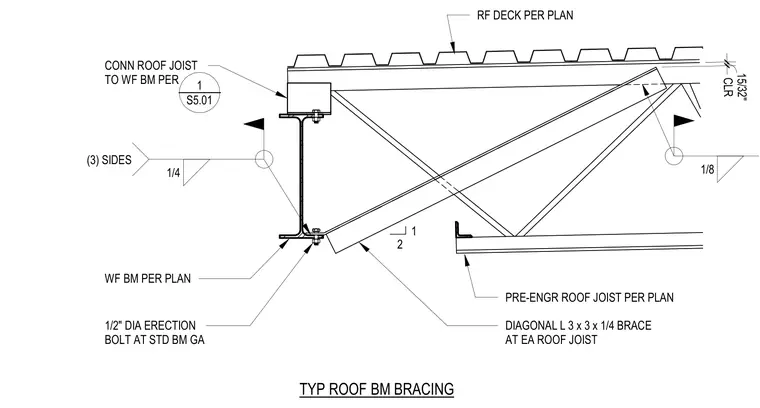

A pre-engineered roof joist bears on a wide-flange beam with a roof deck above. Diagonal angle braces measuring 3x3x1/4 inches connect at each roof joist. A 1/2-inch diameter erection bolt secures the connection at the standard beam gauge. A 1/4-inch fillet weld is applied on three sides.
TYP ROOF BM BRACING 1 2 DIAGONAL L 3 x 3 x 1/4 BRACE AT EA ROOF JOIST PRE-ENGR ROOF JOIST PER PLAN RF DECK PER PLAN 1/2" DIA ERECTION BOLT AT STD BM GA WF BM PER PLAN 1/8 1/4 (3) SIDES CONN ROOF JOIST TO WF BM PER CLR 15/32" _____ 1 S5.01
