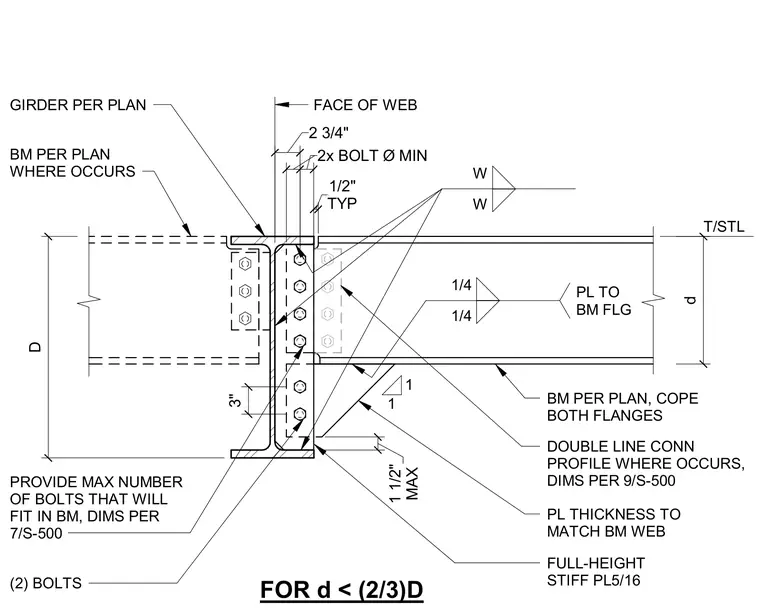

A steel beam frames into a supporting girder web with both flanges coped to accommodate the connection. The beam web connects to the girder via a shear plate welded with quarter-inch fillet welds and fastened with multiple bolts. Full-height 5/16-inch stiffener plates are provided on the girder web to match the beam web thickness. Where the beam depth is less than two-thirds of the girder depth, two bolts are specified.
T/STL 1 1 GIRDER PER PLAN BM PER PLAN WHERE OCCURS PROVIDE MAX NUMBER OF BOLTS THAT WILL FIT IN BM, DIMS PER W W 1/4 1/4 PL TO BM FLG BM PER PLAN, COPE BOTH FLANGES FULL-HEIGHT STIFF PL5/16 PL THICKNESS TO MATCH BM WEB MAX 1 1/2" TYP 1/2" 2x BOLT Ø MIN D FOR d < (2/3)D (2) BOLTS DOUBLE LINE CONN PROFILE WHERE OCCURS, DIMS PER FACE OF WEB 2 3/4" 7/S-500 9/S-500 d 3"
