An intersecting steel beam connection incorporates a one-inch bearing plate and three-quarter-inch A325-SC bolts. Full-height three-eighths-inch stiffener plates are welded to both sides of the web at intersecting beams with quarter-inch fillet welds on three sides unless noted otherwise. Additional five-sixteenth-inch fillet welds secure the components at typical locations. View B-B provides a plan orientation of the beam gauge and bolt spacing relative to the supported member.

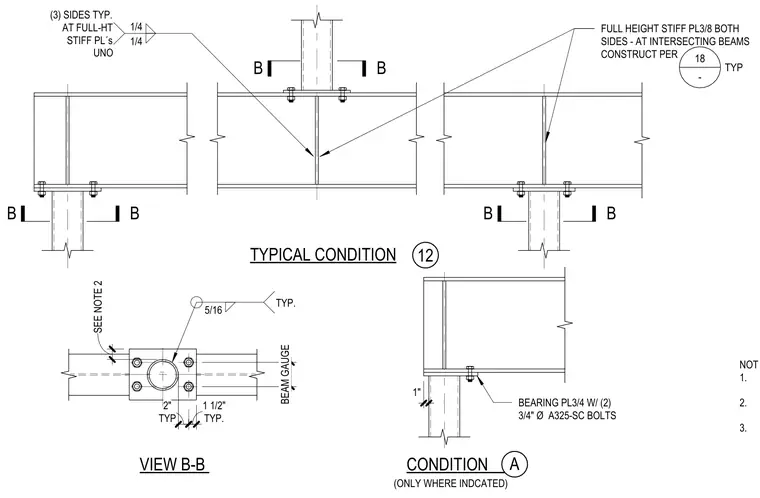

CONDITION A TYPICAL CONDITION 12 1" BEARING PL3/4 W/ (2) 3/4" Ø A325-SC BOLTS FULL HEIGHT STIFF PL3/8 BOTH SIDES - AT INTERSECTING BEAMS CONSTRUCT PER 1. 2. 3. NOTES: 5/16 TYP. 1/4 1/4 (3) SIDES TYP. AT FULL-HT STIFF PL´s UNO 18 - TYP B B B B B B (ONLY WHERE INDCATED) TYP. 1 1/2" TYP 2" SEE NOTE 2 VIEW B-B BEAM GAUGE
