Structural · S-2RQ9K

Housekeeping Pad Detail at Concrete Floor Slabs

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Decks Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

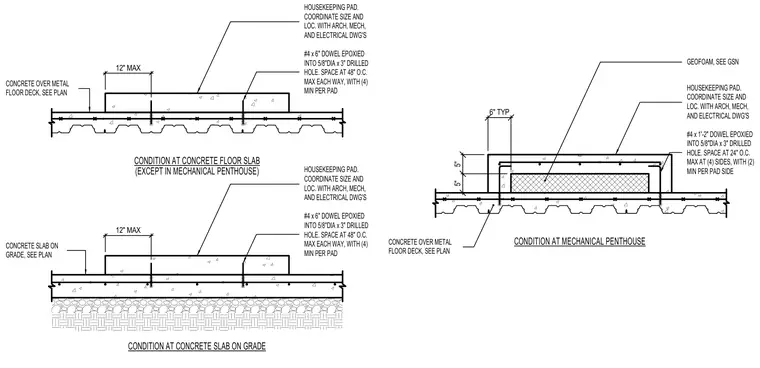

Housekeeping pad conditions occur at a concrete slab on grade, a concrete floor slab over a metal deck, and a mechanical penthouse. The housekeeping pad rests on the concrete slab or metal deck, anchored with number four reinforcing dowels epoxied into five-eighths inch diameter by three inch drilled holes spaced at forty-eight inches on center, requiring a minimum of four dowels per pad. For the mechanical penthouse condition, the pad incorporates geofoam fill with number four dowels epoxied into five-eighths inch diameter by three inch drilled holes spaced at twenty-four inches on center, requiring a minimum of two dowels per pad side. Pad dimensions and locations are coordinated with architectural, mechanical, and electrical drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
