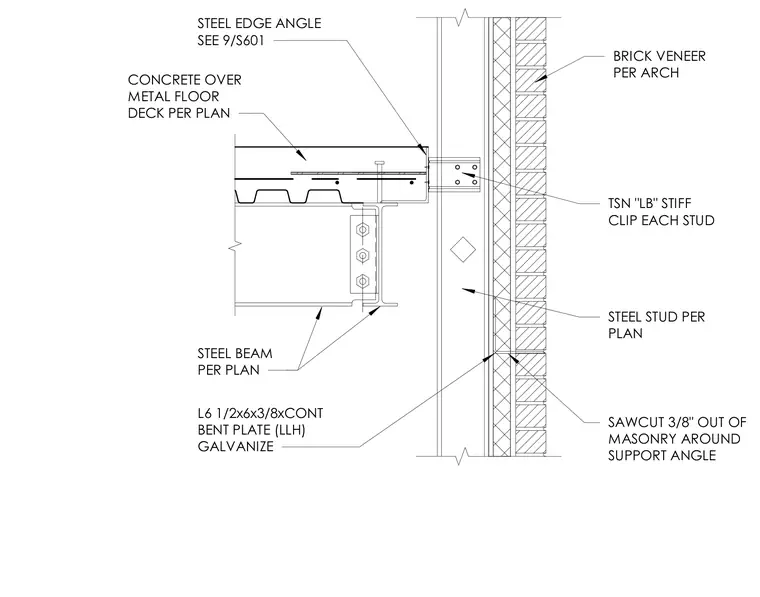

Brick veneer is carried on a continuous galvanized angle detailed as L6 1/2x6x3/8 with a sawcut three-eighths of an inch out of masonry around the support angle. Steel studs sized per plan attach to the floor structure using TSN LB stiff clips at each stud. The floor assembly consists of concrete over metal floor deck supported by a steel beam sized per plan. A steel edge angle referenced on sheet 9/S601 ties the slab edge to the exterior wall framing.
TSN "LB" STIFF CLIP EACH STUD BRICK VENEER PER ARCH STEEL STUD PER PLAN STEEL BEAM PER PLAN CONCRETE OVER METAL FLOOR DECK PER PLAN STEEL EDGE ANGLE SEE 9/S601 SAWCUT 3/8" OUT OF MASONRY AROUND SUPPORT ANGLE L6 1/2x6x3/8xCONT BENT PLATE (LLH) GALVANIZE
