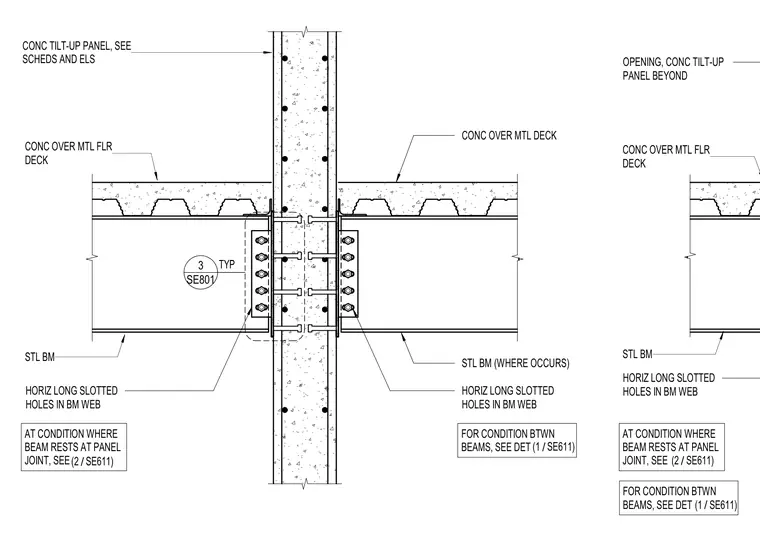

Steel beams frame into a concrete tilt-up wall panel supporting a concrete slab over a metal floor deck. Horizontal long slotted holes are provided in the beam web typical at conditions where the beam rests at a panel joint. Embedded connection plates with threaded studs anchor into the concrete wall panel to receive the steel framing. Concrete fill covers the metal floor deck adjacent to the panel wall on both sides.
STL BM CONC TILT-UP PANEL, SEE SCHEDS AND ELS HORIZ LONG SLOTTED HOLES IN BM WEB CONC OVER MTL FLR DECK SE801 3 CONC OVER MTL DECK STL BM (WHERE OCCURS) HORIZ LONG SLOTTED HOLES IN BM WEB TYP AT CONDITION WHERE BEAM RESTS AT PANEL JOINT, SEE FOR CONDITION BTWN BEAMS, SEE DET / (1 SE611) / (2 SE611) STL BM HORIZ LONG SLOTTED HOLES IN BM WEB CONC OVER MTL FLR DECK OPENING, CONC TILT-UP PANEL BEYOND AT CONDITION WHERE BEAM RESTS AT PANEL JOINT, SEE FOR CONDITION BTWN BEAMS, SEE DET / (1 SE611) / (2 SE611)
