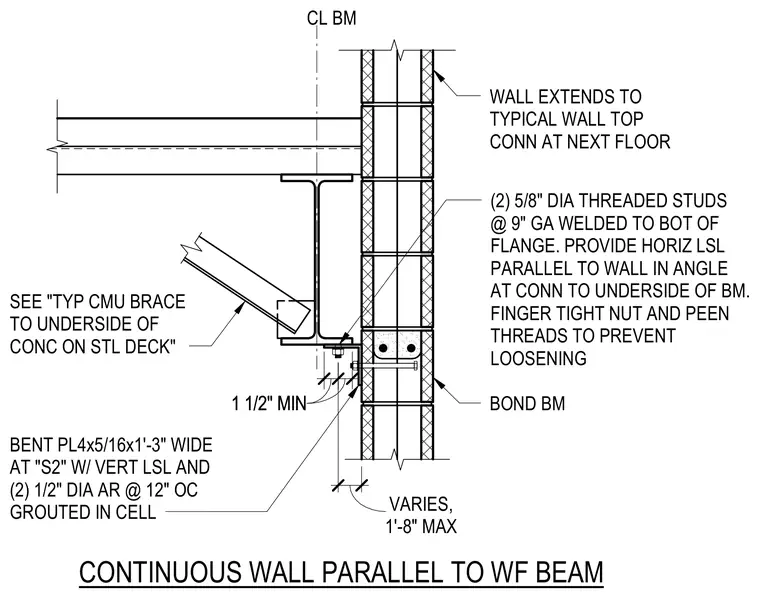

A continuous concrete masonry unit wall runs parallel to a wide flange steel beam supporting a concrete on steel deck floor assembly. Two 5/8-inch diameter threaded studs at 9-inch gauge are welded to the bottom flange of the beam, securing a horizontal laminated strand lumber member parallel to the wall inside an angle. Nuts are installed finger-tight with peened threads to prevent loosening. A bent plate measuring 4 inches by 5/16 inches by 1 foot 3 inches wide is installed with vertical laminated strand lumber and two 1/2-inch diameter anchor rods at 12 inches on center grouted in the cell. The wall features a bond beam and extends to a typical wall top connection at the next floor with a variable offset up to 1 foot 8 inches maximum.
CL BM 2 1/2" BOND BM SEE "TYP CMU BRACE TO UNDERSIDE OF CONC ON STL DECK" BENT PL4x5/16x1'-3" WIDE AT "S2" W/ VERT LSL AND (2) 1/2" DIA AR @ 12" OC GROUTED IN CELL CONTINUOUS WALL PARALLEL TO WF BEAM VARIES, 1'-8" MAX WALL EXTENDS TO TYPICAL WALL TOP CONN AT NEXT FLOOR 1 1/2" MIN 1 1/2" MIN (2) 5/8" DIA THREADED STUDS @ 9" GA WELDED TO BOT OF FLANGE. PROVIDE HORIZ LSL PARALLEL TO WALL IN ANGLE AT CONN TO UNDERSIDE OF BM. FINGER TIGHT NUT AND PEEN THREADS TO PREVENT LOOSENING
