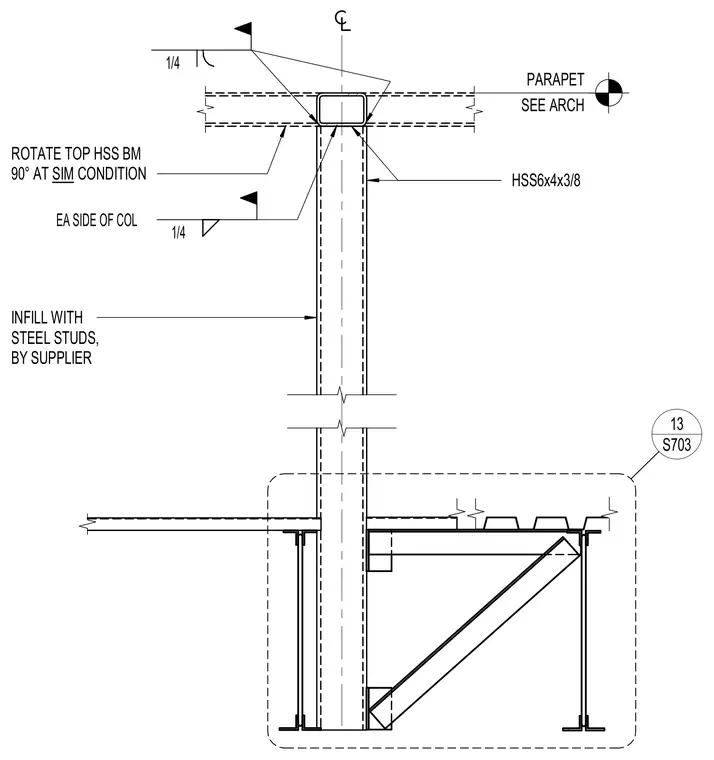

An HSS6x4x3/8 hollow structural section column extends upward to support a rotated top hollow structural section beam at the interior parapet. The top beam is welded on each side of the column with a one-quarter inch fillet weld, and the top HSS beam is rotated ninety degrees at similar conditions. Steel studs by the supplier provide infill framing within the assembly. Architectural coordination is required for the parapet finish as indicated.
PARAPET SEE ARCH 1/4 EA SIDE OF COL S703 13 INFILL WITH STEEL STUDS, BY SUPPLIER HSS6x4x3/8 1/4 ROTATE TOP HSS BM 90° AT SIM CONDITION
