The top and bottom track members are specified to be one gauge thicker than the stud size. Two number ten sheet metal screws spaced at twelve inches on center connect the track to the lintel member. As an option in lieu of the welded connection shown, number ten screws spaced at twelve inches on center are used on each lintel member. The lintel is sized per the structural schedule based on stud width.

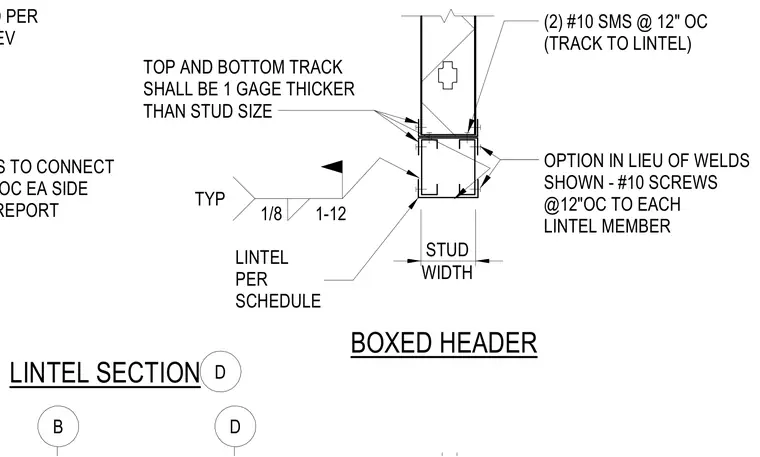

STUD WIDTH OPTION IN LIEU OF WELDS SHOWN - #10 SCREWS @12"OC TO EACH LINTEL MEMBER TOP AND BOTTOM TRACK SHALL BE 1 GAGE THICKER THAN STUD SIZE LINTEL PER SCHEDULE 1/8 1-12 LINTEL SECTION D D B TYPICAL SMS TO CONNECT INSERT @8" OC EA SIDE PER IAPMO REPORT METAL STUD PER PLAN OR ELEV BOXED HEADER TYP (2) #10 SMS @ 12" OC (TRACK TO LINTEL)
