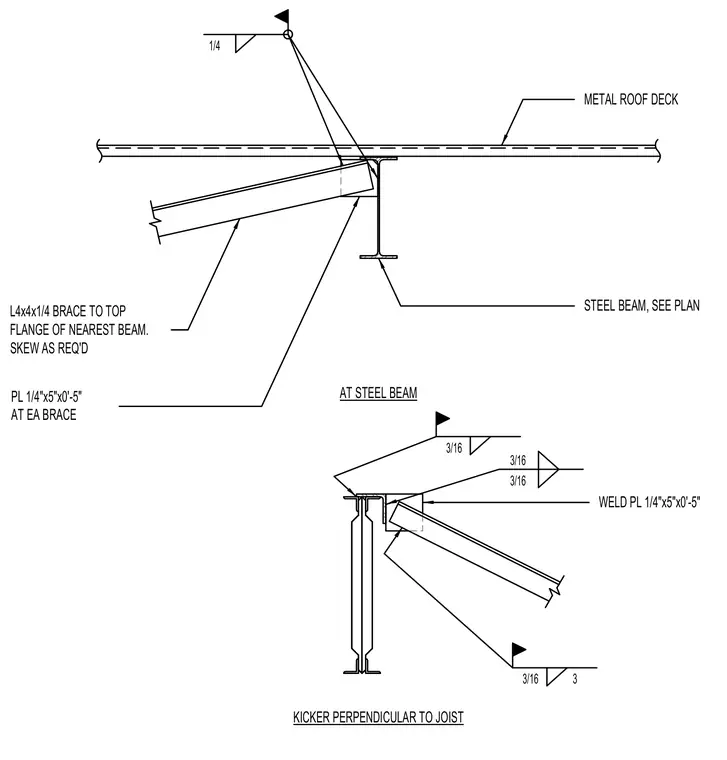

An L4x4x1/4 angle brace extends to the top flange of the nearest steel beam below a metal roof deck. A 1/4 inch by 5 inch by 0 foot 5 inch connection plate is welded to each brace with a 3/16 inch fillet weld. The assembly is skewed as required per plan.
METAL ROOF DECK STEEL BEAM, SEE PLAN PL 1/4"x5"x0'-5" 1/4 AT EA BRACE AT STEEL BEAM L4x4x1/4 BRACE TO TOP FLANGE OF NEAREST BEAM. SKEW AS REQ'D 3/16 3/16 WELD PL 1/4"x5"x0'-5" KICKER PERPENDICULAR TO JOIST 3/16 3 3/16
