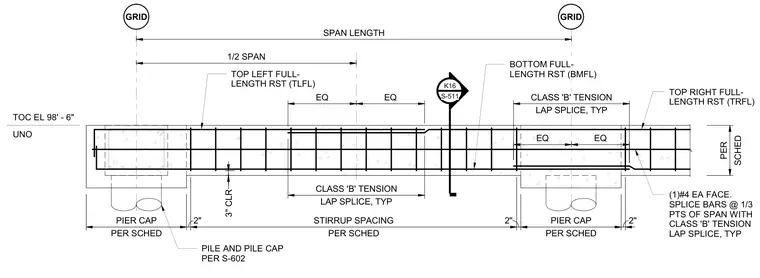

A cast-in-place concrete perimeter grade beam is supported on piles and pile caps per the structural schedule. Top and bottom full-length reinforcing steel bars extend across the span, supplemented by spliced bars at the one-third points with Class B tension lap splices. Stirrups are spaced per the schedule with three-inch concrete clearance. Additional face reinforcement consists of one number four bar per face.
PILE AND PILE CAP PER S-602 GRID GRID 3" CLR PER SCHED PIER CAP 2" PER SCHED STIRRUP SPACING 2" PER SCHED PIER CAP 2" EQ EQ LAP SPLICE, TYP CLASS 'B' TENSION SPAN LENGTH 1/2 SPAN TOP LEFT FULL- LENGTH RST (TLFL) TOP RIGHT FULL- LENGTH RST (TRFL) BOTTOM FULL- LENGTH RST (BMFL) EQ EQ LAP SPLICE, TYP CLASS 'B' TENSION (1)#4 EA FACE. SPLICE BARS @ 1/3 PTS OF SPAN WITH CLASS 'B' TENSION LAP SPLICE, TYP SCHED PER TOC EL 98' - 6" K16 S-511 UNO
