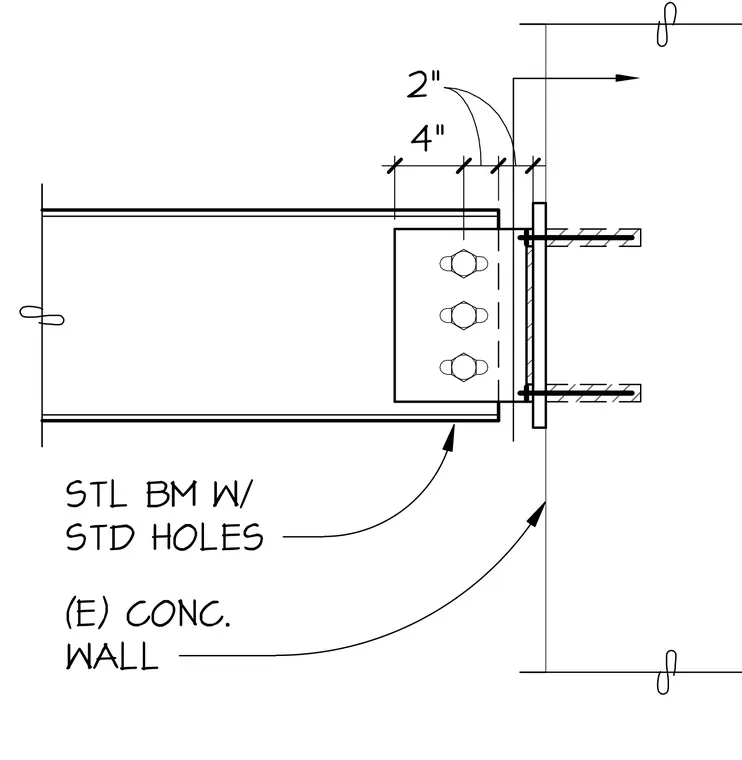

A steel beam featuring standard holes connects to an existing concrete wall. The connection utilizes an end plate anchored into the concrete wall with embedded fasteners. Spacing dimensions of four inches and two inches govern the layout of the connection.
4" 2" 2" STL BM W/ STD HOLES (E) CONC. WALL
