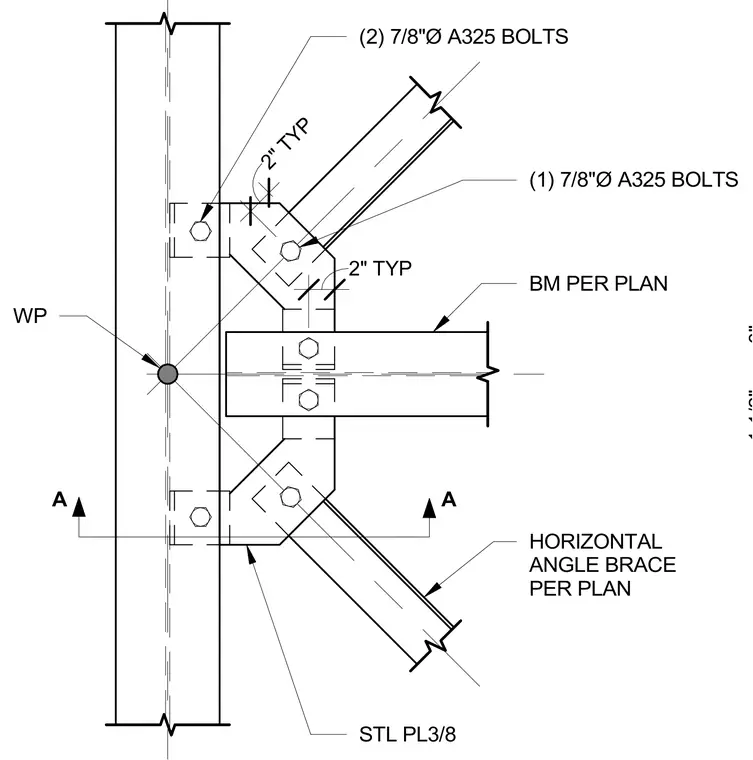

Horizontal angle braces frame into a structural steel beam sized per plan using a three-eighths-inch steel plate gusset connection. The braces connect to the gusset plate using one and two seven-eighths-inch diameter A325 bolts. Edge distances and typical spacing dimensions are provided at the brace connections. The work point aligns the intersecting structural members at the beam intersection.
WP HORIZONTAL ANGLE BRACE PER PLAN STL PL3/8 BM PER PLAN (1) 7/8"Ø A325 BOLTS (2) 7/8"Ø A325 BOLTS A A 1 1/2" 3" 2" TYP 2" TYP
