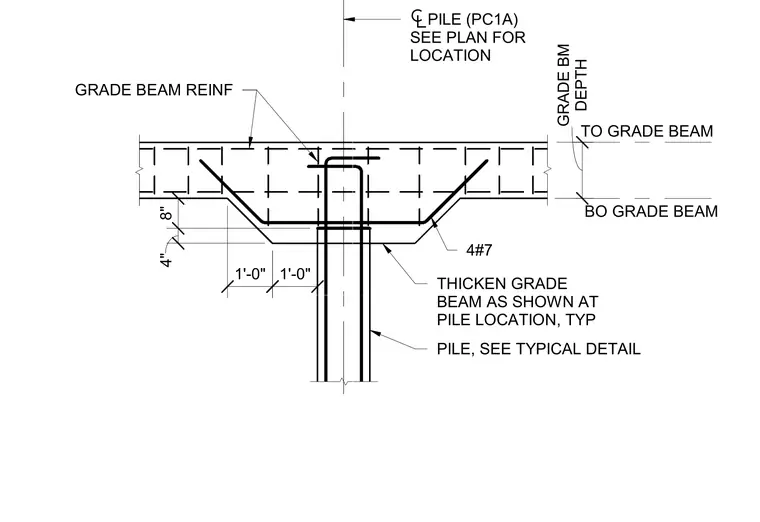

A single pile type PC1A supports a concrete grade beam with local thickening at the pile location. Four number seven reinforcing bars extend from the pile into the grade beam reinforcement cage with hooked ends. The thickened section features diagonal and longitudinal rebar profiling with dimensions indicating a one-foot slope offset and specific depth increments. Top of grade beam and bottom of grade beam elevations are established relative to the structural grid line.
GRADE BEAM REINF PILE, SEE TYPICAL DETAIL TO GRADE BEAM BO GRADE BEAM THICKEN GRADE BEAM AS SHOWN AT PILE LOCATION, TYP 4#7 PILE (PC1A) SEE PLAN FOR LOCATION 4" 8" 1'-0" DEPTH GRADE BM 1'-0"
