A hollow structural section post measuring HSS4x4x5/16 mounts to a three-quarter-inch thick base plate at the steel framing level. Additional HSS4x4x5/16 horizontal rails span between vertical posts at the top and mid-height positions, secured with one-quarter-inch fillet welds. A one-half-inch stiffener plate sits under the posts, paired with a full-depth shear tab or stiffener of three-eighth-inch minimum thickness welded to the supporting steel beam. A cover plate is located above the assembly, and blockouts are provided for welding access as required by the connection geometry.

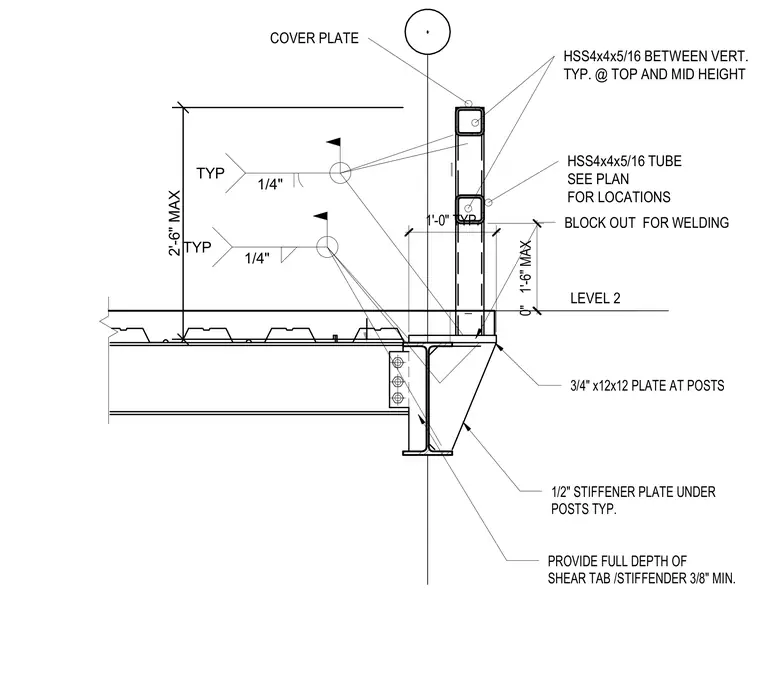

2'-6" MAX . LEVEL 2 HSS4x4x5/16 TUBE SEE PLAN FOR LOCATIONS HSS4x4x5/16 BETWEEN VERT. TYP. @ TOP AND MID HEIGHT COVER PLATE 1/4" TYP BLOCK OUT FOR WELDING PROVIDE FULL DEPTH OF SHEAR TAB /STIFFENDER 3/8" MIN. 3/4" x12x12 PLATE AT POSTS 1'-0" TYP. 1/4" TYP 1/2" STIFFENER PLATE UNDER POSTS TYP. 0" 1'-6" MAX
