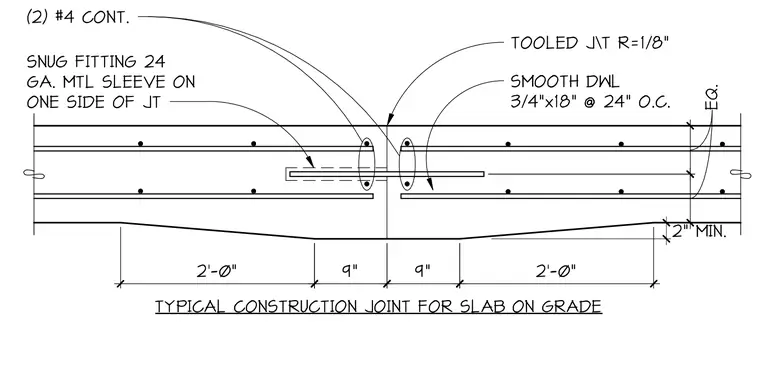

Two continuous number four reinforcing bars run parallel to the joint on each side. Smooth dowels measuring three-quarters of an inch by eighteen inches are spaced at twenty-four inches on center across the joint. A snug-fitting twenty-four gauge metal sleeve is fitted over one side of the dowel to allow horizontal movement. The joint features a tooled radius of one-eighth of an inch at the top surface, with thickened slab edges extending two inches minimum at the perimeter.
2'-0" 2'-0" 2" MIN. SMOOTH DWL 3/4"x18" @ 24" O.C. SNUG FITTING 24 GA. MTL SLEEVE ON ONE SIDE OF JT TYPICAL CONSTRUCTION JOINT FOR SLAB ON GRADE 9" 9" TOOLED J\T R=1/8" (2) #4 CONT. EQ. EQ.
