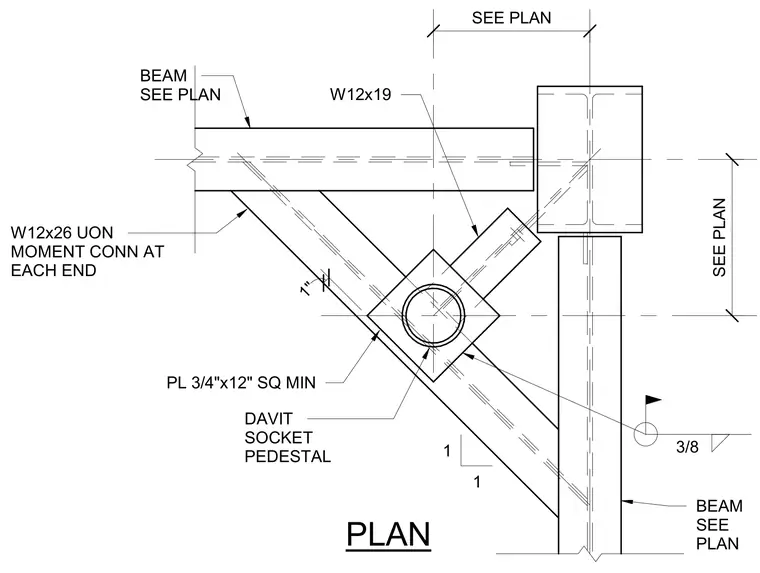

A davit socket pedestal is positioned at the corner column framing assembly, supported by a W12x19 beam and a W12x26 beam configured with moment connections at each end. A square plate measuring three-quarters of an inch by twelve inches minimum sits below the pedestal. The intersecting structural steel framing ties back to the corner column with welded connections shown at three-eighths of an inch. Member sizing and placement dimensions are coordinated per plan.
PLAN W12x26 UON MOMENT CONN AT EACH END PL 3/4"x12" SQ MIN DAVIT SOCKET PEDESTAL 1 1 BEAM SEE PLAN W12x19 BEAM SEE PLAN SEE PLAN 1" 3/8 SEE PLAN
