Structural · S-2PYH2

Steel Beam to Column Shear Tab Connections

Materials

Steel

Elements

Columns Beams Walls Anchors / Embeds Connections / Plates

Connections

Shear Tab / Single Plate HSS Connection Welded Connection Bolted Connection Rebar Splice / Development Embed Plate

About this detail

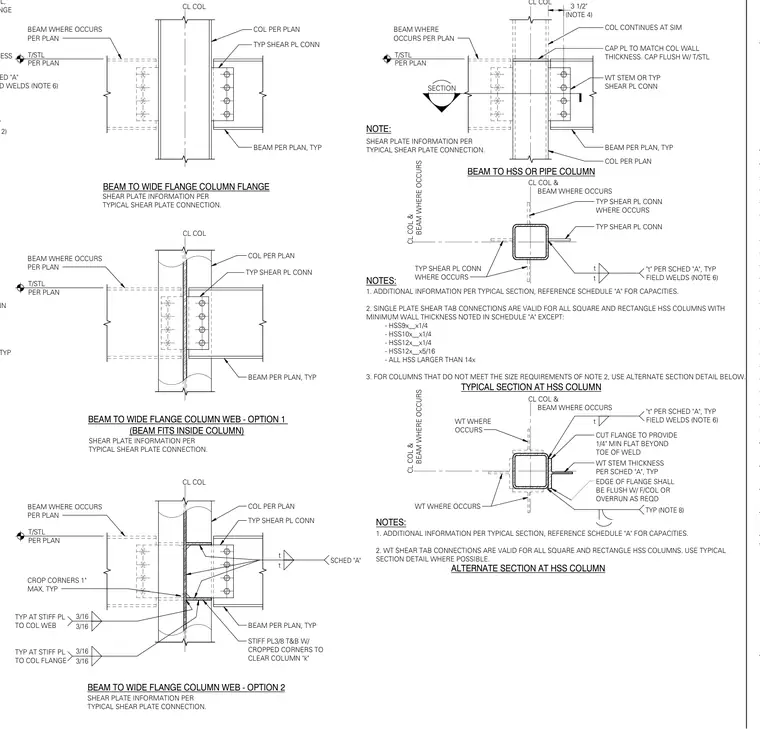

These structural details illustrate beam-to-column shear tab connections for both wide flange and hollow structural section columns. The configurations include standard shear plates welded to wide flange column flanges and webs, with option two incorporating three-eighths-inch top and bottom stiffener plates cropped at the corners to clear the column k-distance. HSS column connections utilize single-plate shear tabs or WT shapes with field welds sized per schedule A. Notes specify plate thicknesses, bolt counts, and restrictions on column wall thicknesses for standard shear tab applications.

SHEAR PLATE THICKNESS BOLTS PER SCHED "A" WASHERS PER (NOTE 2) COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP BEAM TO WIDE FLANGE COLUMN FLANGE SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. CL COL CL COL BEAM WHERE OCCURS PER PLAN COL CONTINUES AT SIM CAP PL TO MATCH COL WALL THICKNESS. CAP FLUSH W/ T/STL WT STEM OR TYP SHEAR PL CONN BEAM PER PLAN, TYP COL PER PLAN BEAM TO HSS OR PIPE COLUMN SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. TYP SHEAR PL CONN BEAM PER PLAN, TYP COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP CL COL BEAM TO WIDE FLANGE COLUMN WEB - OPTION 1 (BEAM FITS INSIDE COLUMN) SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. CL COL COL PER PLAN TYP SHEAR PL CONN BEAM PER PLAN, TYP CROP CORNERS 1" MAX, TYP STIFF PL3/8 T&B W/ CROPPED CORNERS TO CLEAR COLUMN "k" BEAM TO WIDE FLANGE COLUMN WEB - OPTION 2 SHEAR PLATE INFORMATION PER TYPICAL SHEAR PLATE CONNECTION. CL COL & BEAM WHERE OCCURS TYP SHEAR PL CONN WHERE OCCURS TYPICAL SECTION AT HSS COLUMN BEAM WHERE OCCURS PER PLAN BEAM WHERE OCCURS PER PLAN t t SCHED "A" 3/16 3/16 3/16 3/16 SCHED "A" FIELD WELDS (NOTE 6) BEAM WHERE OCCURS PER PLAN TYP AT STIFF PL TO COL WEB TYP AT STIFF PL TO COL FLANGE (NOTE 4) 3 1/2" F/SUPPORT (EMBED PL, BEAM WEB, COL FLANGE T/STL PER PLAN T/STL PER PLAN T/STL PER PLAN T/STL PER PLAN SECTION CL COL & BEAM WHERE OCCURS TYP SHEAR PL CONN TYP SHEAR PL CONN WHERE OCCURS t t "t" PER SCHED "A", TYP FIELD WELDS (NOTE 6) NOTES: 1. ADDITIONAL INFORMATION PER TYPICAL SECTION, REFERENCE SCHEDULE "A" FOR CAPACITIES. 2. SINGLE PLATE SHEAR TAB CONNECTIONS ARE VALID FOR ALL SQUARE AND RECTANGLE HSS COLUMNS WITH MINIMUM WALL THICKNESS NOTED IN SCHEDULE "A" EXCEPT: - HSS9x__x1/4 - HSS10x__x1/4 - HSS12x__x1/4 - HSS12x__x5/16 - ALL HSS LARGER THAN 14x 3. FOR COLUMNS THAT DO NOT MEET THE SIZE REQUIREMENTS OF NOTE 2, USE ALTERNATE SECTION DETAIL BELOW. WT STEM THICKNESS PER SCHED "A", TYP EDGE OF FLANGE SHALL BE FLUSH W/ F/COL OR OVERRUN AS REQD CUT FLANGE TO PROVIDE 1/4" MIN FLAT BEYOND TOE OF WELD ALTERNATE SECTION AT HSS COLUMN TYP (NOTE 8) CL COL & BEAM WHERE OCCURS CL COL & BEAM WHERE OCCURS t "t" PER SCHED "A", TYP FIELD WELDS (NOTE 6) WT WHERE OCCURS WT WHERE OCCURS NOTES: 1. ADDITIONAL INFORMATION PER TYPICAL SECTION, REFERENCE SCHEDULE "A" FOR CAPACITIES. 2. WT SHEAR TAB CONNECTIONS ARE VALID FOR ALL SQUARE AND RECTANGLE HSS COLUMNS. USE TYPICAL SECTION DETAIL WHERE POSSIBLE. NOTE: DRAWN BY: REVIEWED BY: APPROVED BY: DES PROJECT NO.: STRUCTURAL - STEEL FRAMING DETAILS

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
