A concrete housekeeping pad sits atop a structural slab with a bonded or roughened surface interface if poured separately. Reinforcement is provided per the typical topping slab detail, with anchor bolts or anchors installed as required by the equipment supplier. The pad features a minimum four and one-half inch clearance dimension and a variable pad height coordinated with mechanical, electrical, and architectural plans.

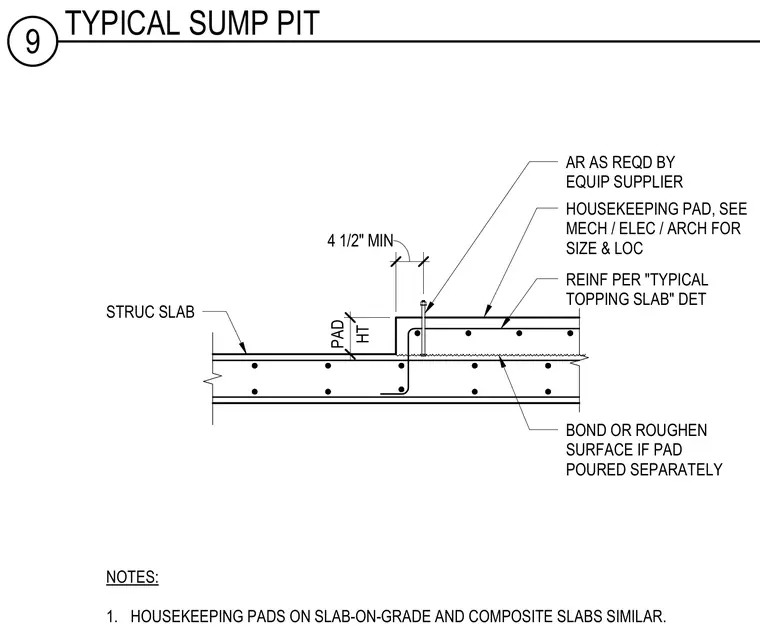

NOTES: 1. HOUSEKEEPING PADS ON SLAB-ON-GRADE AND COMPOSITE SLABS SIMILAR. 4 1/2" MIN BOND OR ROUGHEN SURFACE IF PAD POURED SEPARATELY REINF PER "TYPICAL TOPPING SLAB" DET HOUSEKEEPING PAD, SEE MECH / ELEC / ARCH FOR SIZE & LOC AR AS REQD BY EQUIP SUPPLIER STRUC SLAB 6" PAD HT 9 TYPICAL SUMP PIT
