A concrete curb is cast on top of a concrete slab on grade, reinforced with number three bars at twelve inches on center and three continuous number four bars. The curb height is limited to a maximum of eight inches, and its width ranges between eight and twelve inches. Standard typical lap lengths apply to the slab reinforcing bars integrated below the curb.

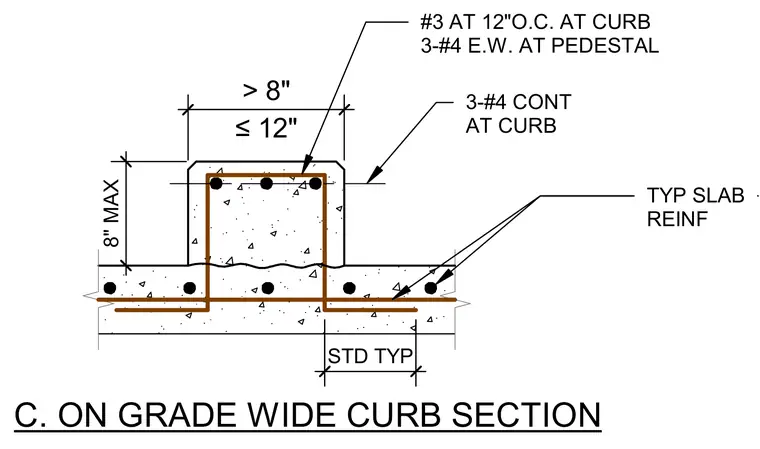

C. ON GRADE WIDE CURB SECTION D. ON GRADE TALL CURB SECTION TYP SLAB REINF #3 AT 12"O.C. AT CURB 3-#4 E.W. AT PEDESTAL 3-#4 CONT AT CURB ≤ 12" > 8" 8" MAX STD TYP
