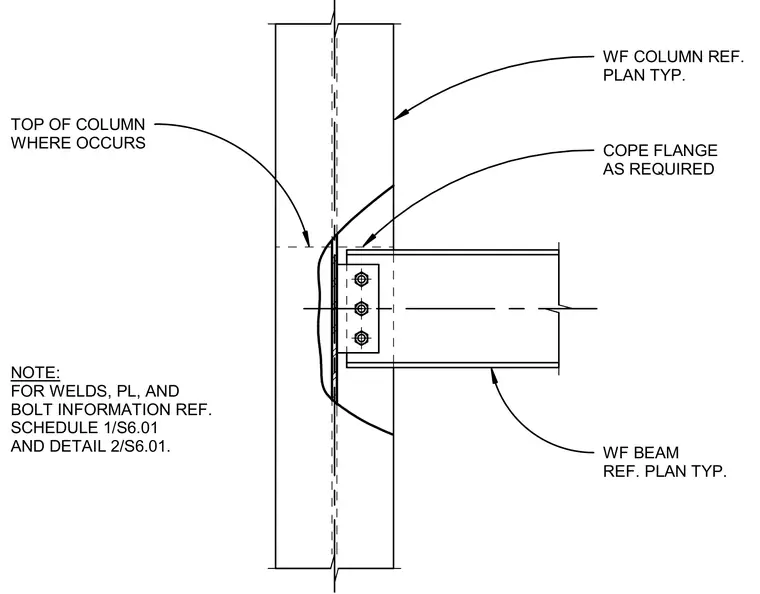

A wide flange beam connects to a wide flange column with the beam flange coped as required for clearance. The beam web frames into the column utilizing a bolted connection with three bolts. The top of the column is indicated where it occurs. For welds, plates, and bolt information, reference is made to schedule 1/S6.01 and detail 2/S6.01.
WF COLUMN REF. PLAN TYP. COPE FLANGE AS REQUIRED WF BEAM REF. PLAN TYP. TOP OF COLUMN WHERE OCCURS NOTE: FOR WELDS, PL, AND BOLT INFORMATION REF. SCHEDULE 1/S6.01 AND DETAIL 2/S6.01.
